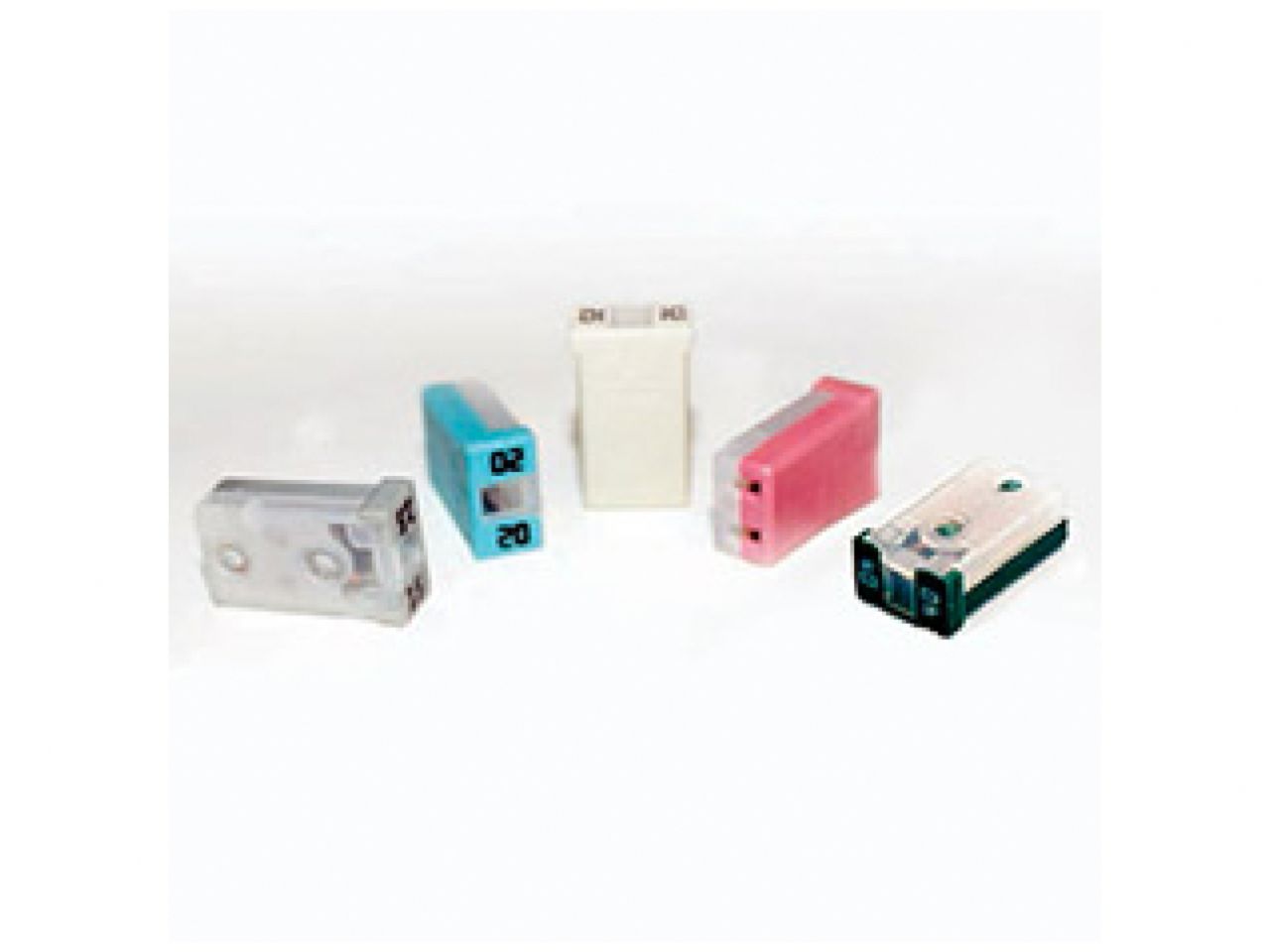

Littelfuse Mcase 32 Vdc 25A

The Unslotted MCASE+ Fuse is a cartridge style fuse up to 40A with female terminals for 2.8 mm male terminals. The Slotted MCASE+ Fuse is available up to 60A and can mate with larger male terminals (e.g., 6.3mm) or even mount directly to onto a busbar. Miniaturized footprint for optimal usage of space,
featuring time delay and the ability to handle inrush currents. Additional information: littelfuse.com/MCASE

• Color: White Only
• Amps (A): 25
• Voltage Rating: 32V DC
• Interrupting Ratings: 1000A @ 32V DC
• Operating Temperature Range: -40?C to +125?C
• Fuse Insertion Force: 50N (11.2lbf) Typical
• Extraction Force: 4N Min. (0.9 lb). | 24.5N Max. (5.5 lb)
• Carded 1-PC
