Manley

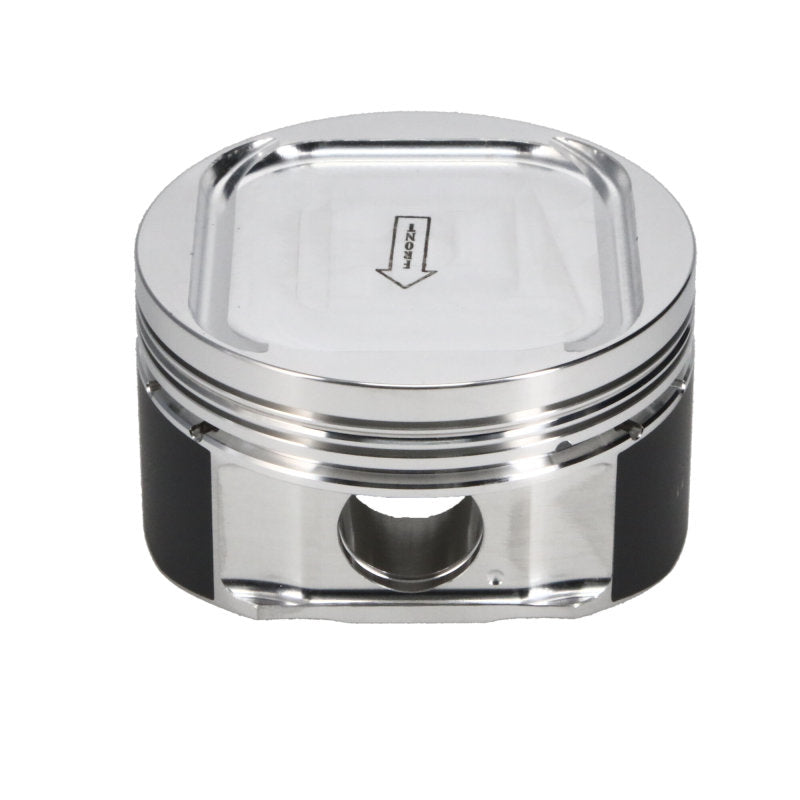

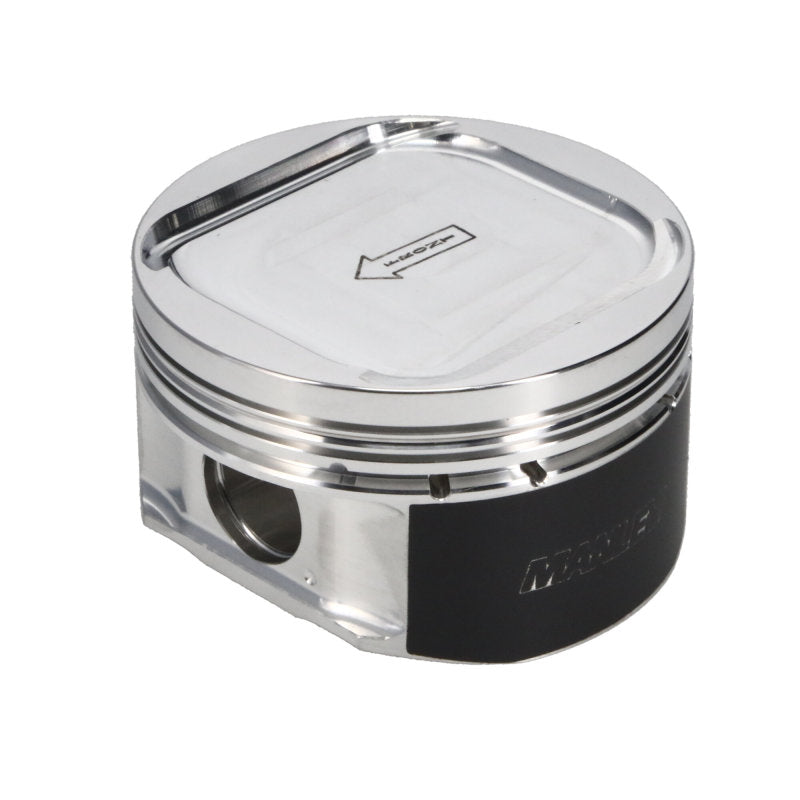

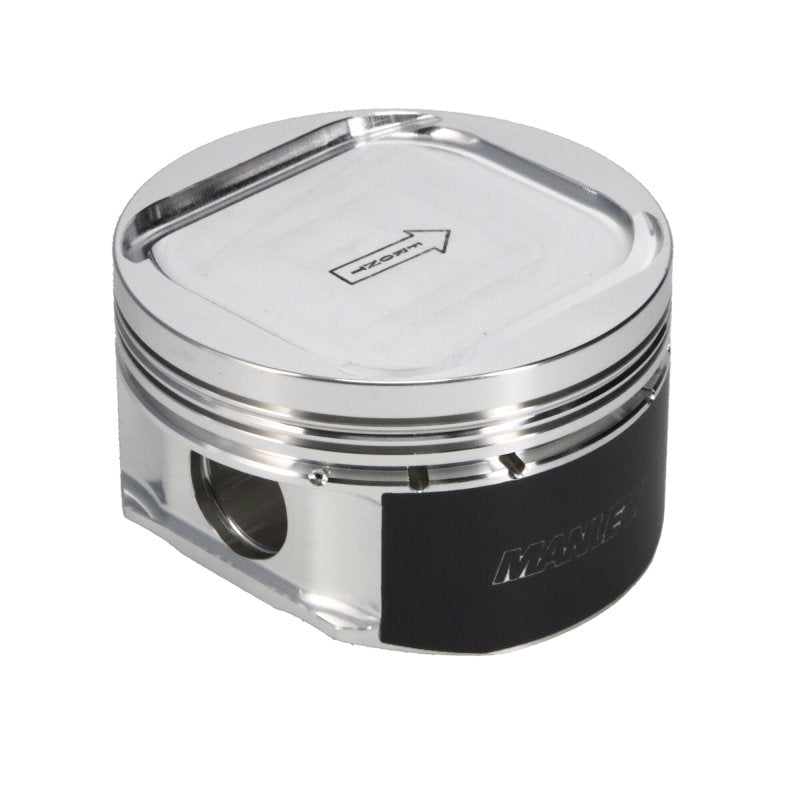

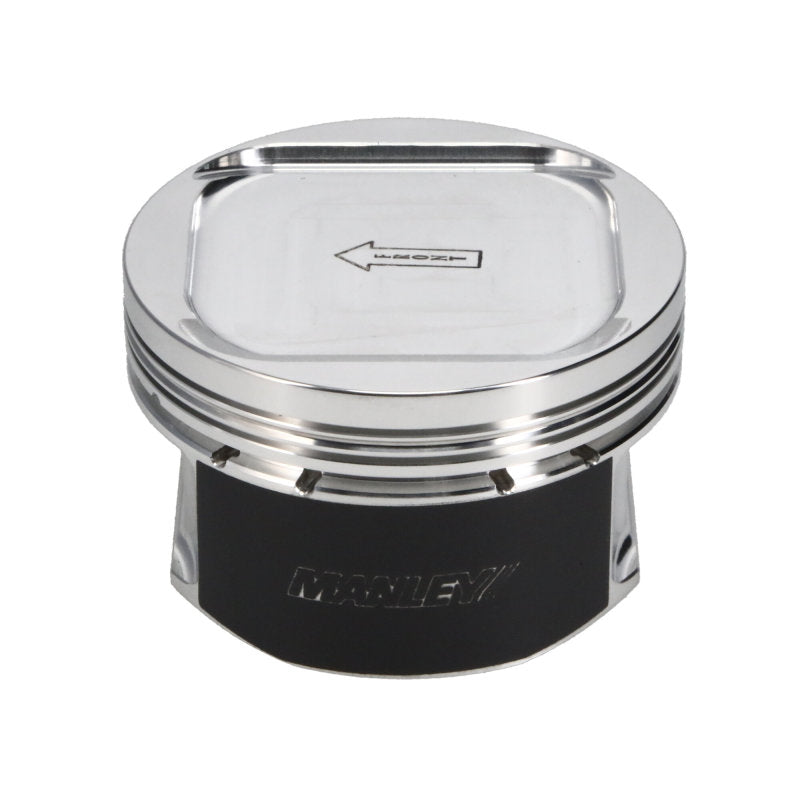

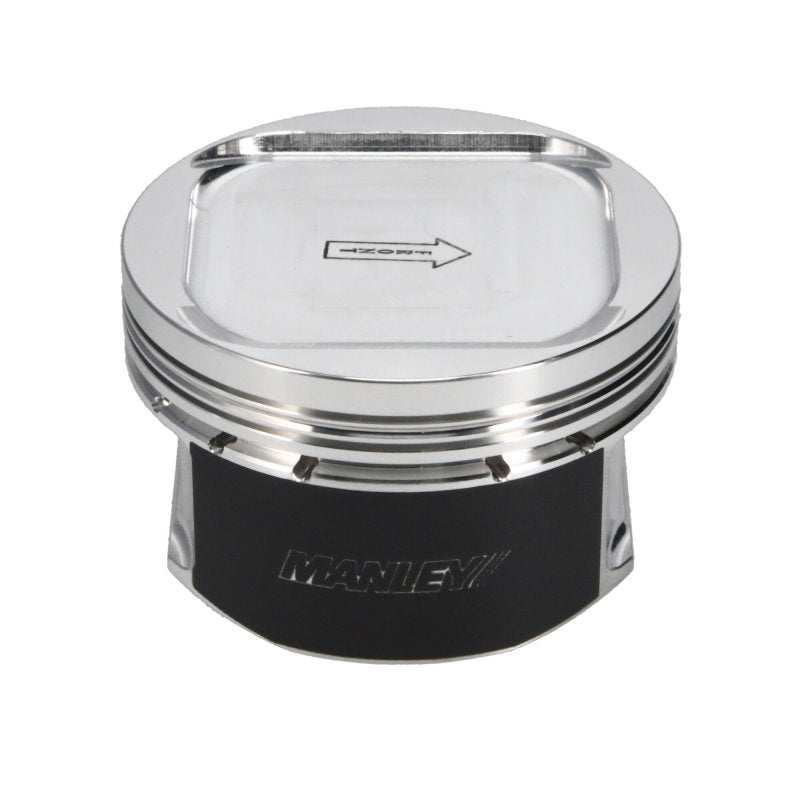

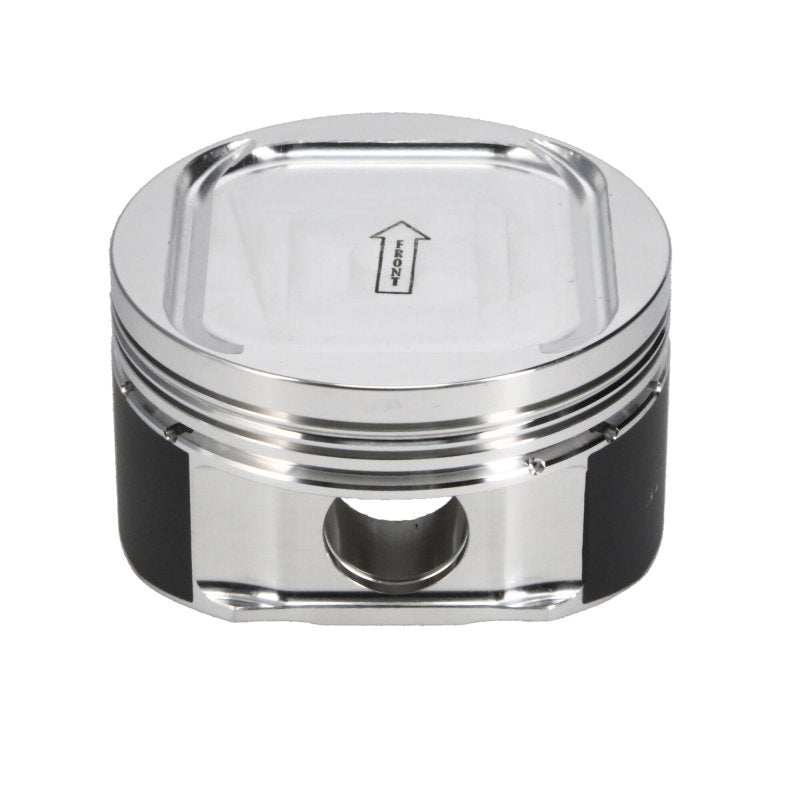

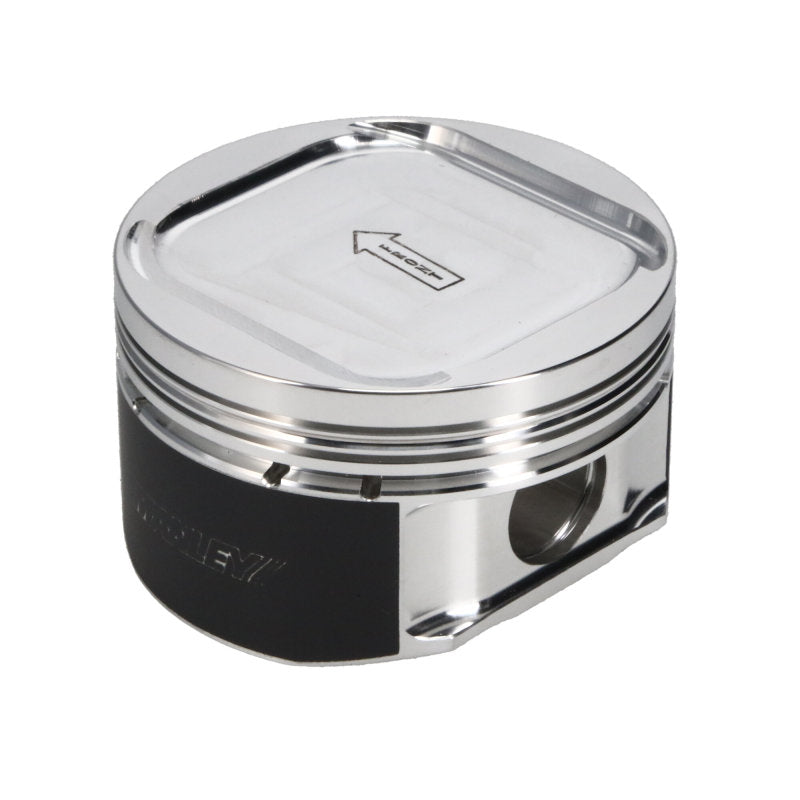

Manley Performance Platinum Series Pistons - Subaru 92.5mm/1.285 CD/D

Manley Performance Platinum Series Pistons - Subaru 92.5mm/1.285 CD/D

sku: 0HYP8 | mpn: 615005C-4
$876.54
$876.54 $876.54
Sale Sold out
Shipping calculated at checkout.

Low stock: 4 left

Emissions

⚠️ RACING/COMPETITION Use Only

California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.

Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.

  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Features

  • 2618 high strength material; Lightweight design with offset wrist pin for quiet start-ups
  • .180" x 2.500" wall Premium Chrome Moly pin (Standard Series) included P/N 42346
  • 9310 alloy .210" wall pin (Extreme Duty Series) included P/N 42546
  • Pressure balance groove
  • Will accommodate +1mm valve sizes
  • Premium Steel top rings with Napier seconds and round wire locks included
  • Recommended piston clearance: .003" for mildly boosted and .0035" for highly boosted measured .850" (79/83mm stroke) and 1.100" (75mm stroke) from the bottom of the oil ring

Specifications

  • 92.50 Bore size m
  • +.5mm Over size
  • 5.137" Rod length
  • 1.285" Comp distance
  • -12 Dome volume(cc)
  • 48 Cylinder head(cc)
  • 8.5 Comp ratio
  • Dish Piston type
  • 375 Piston wt/gms
  • 46925-4 Include ring set


Vehicle Fitments:

Year Make Model Submodel
2005 Subaru Impreza Outback Sport
2002 - 2004 Subaru Impreza Outback, TS
2002 - 2005 Subaru Impreza RS, WRX
2004 - 2005 Subaru Impreza WRX STI
