Moog Inner Tie Rod End

Moog Inner Tie Rod End

sku: 1EFY3 | mpn: EV800085
$60.24
$60.24 $60.24
Sale Sold out
Shipping calculated at checkout.

82 in stock
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

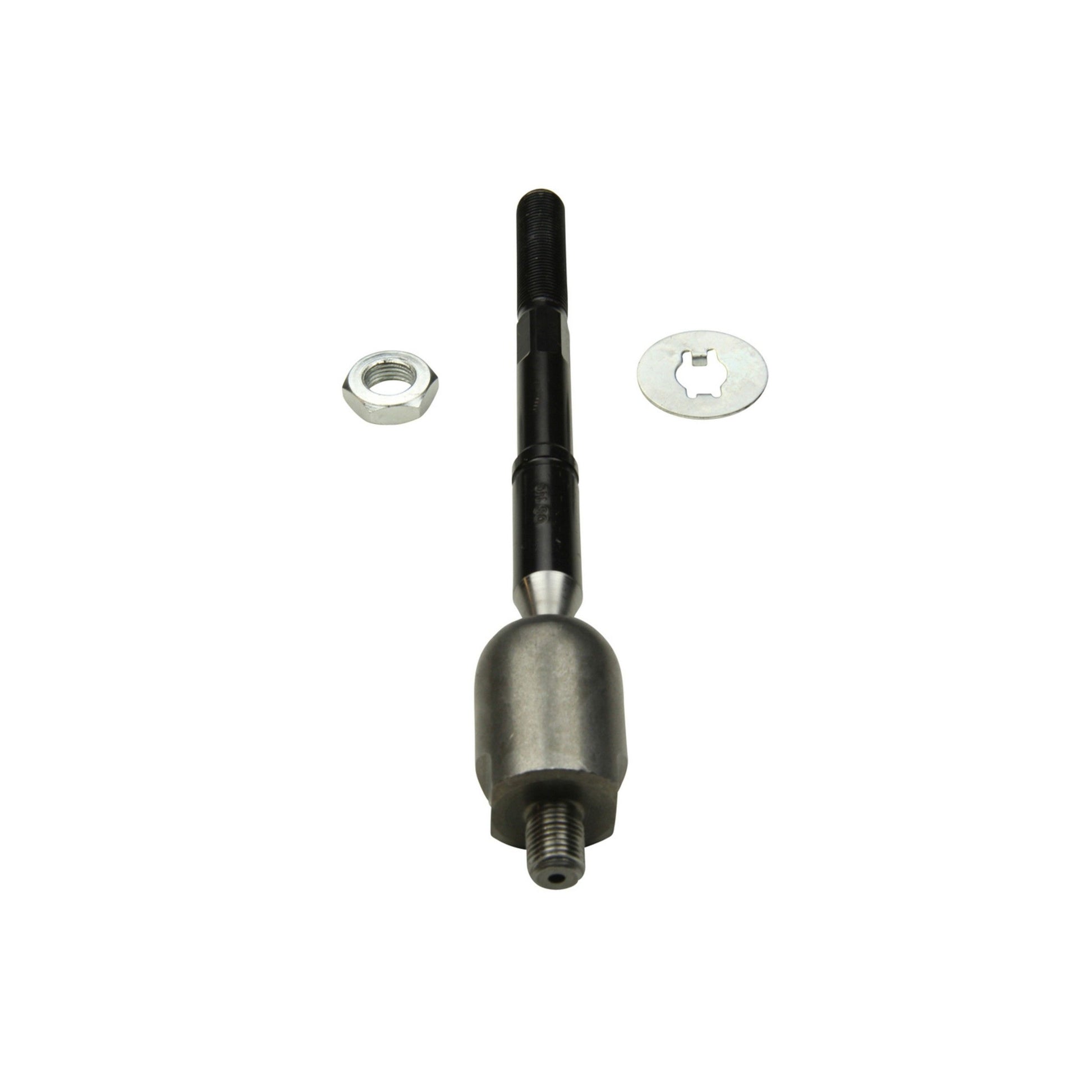

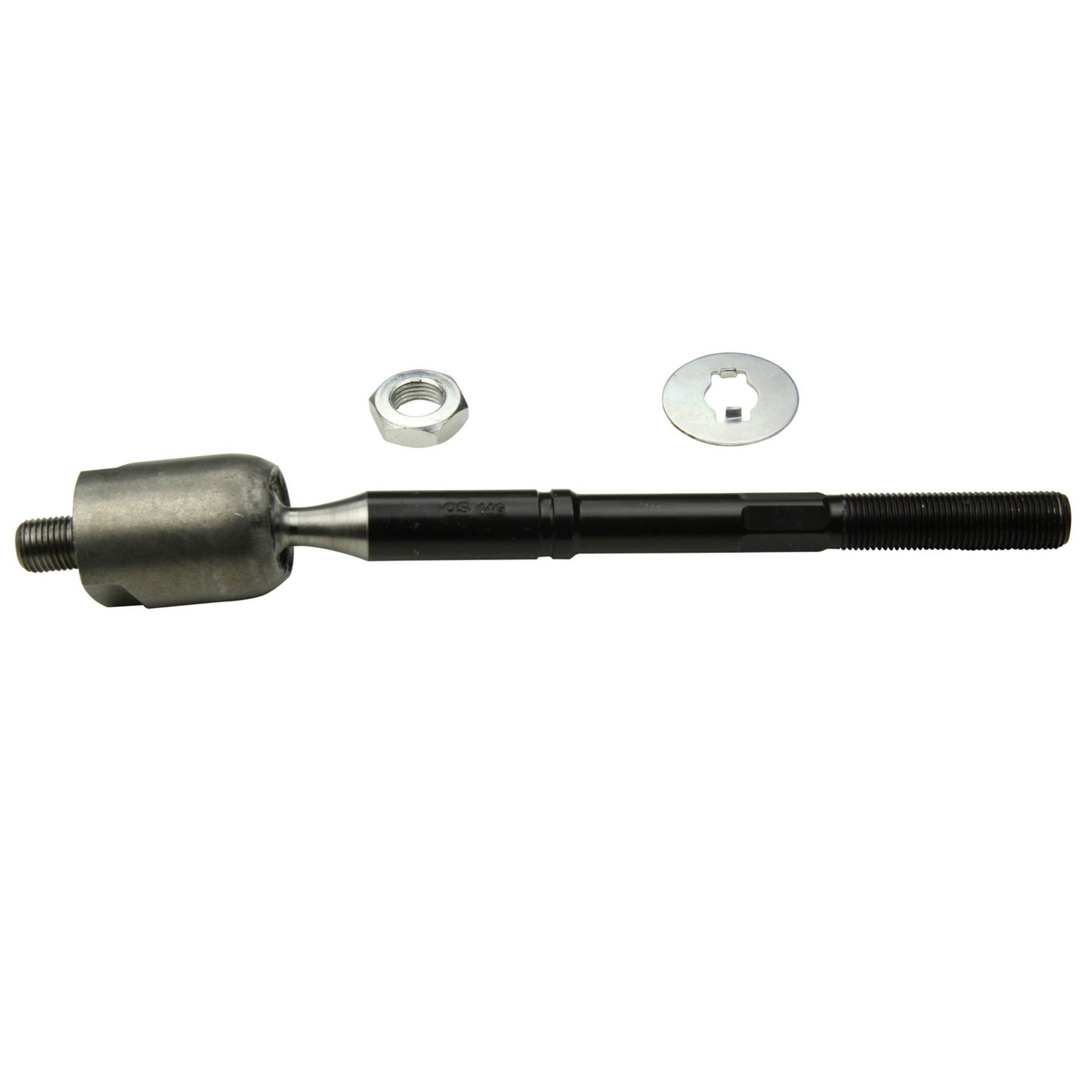

Inner Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear
  • Exclusive cover plate protects against contaminants leaking into the bearing surface
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength

Specifications:

Tie Rods

Length (in) 9.730
Outer Tie Rod Thread M15-1.5R
Shaft Diameter (in) 0.645
Rack End Thread M14-1.5R
Rack End Type (Male / Female) MALE
Specification Image Reference INNERTIEROD.tif
End 1 Thread Pitch (MM) 1.5
End 2 Thread Diameter (MM) 14.0
End 2 Thread Pitch (MM) 1.5
End 2 Thread Direction Clockwise


Vehicle Fitments:

Year Make Model Submodel
2007 - 2012 Lexus ES350 Base
2011 - 2012 Toyota Avalon Base
2005 - 2012 Toyota Avalon Limited, XLS
2005 - 2008 Toyota Avalon Touring
2005 - 2010 Toyota Avalon XL
2009 - 2011 Toyota Camry Base
2007 - 2008 Toyota Camry CE
2007 - 2011 Toyota Camry XLE, Hybrid, SE, LE
