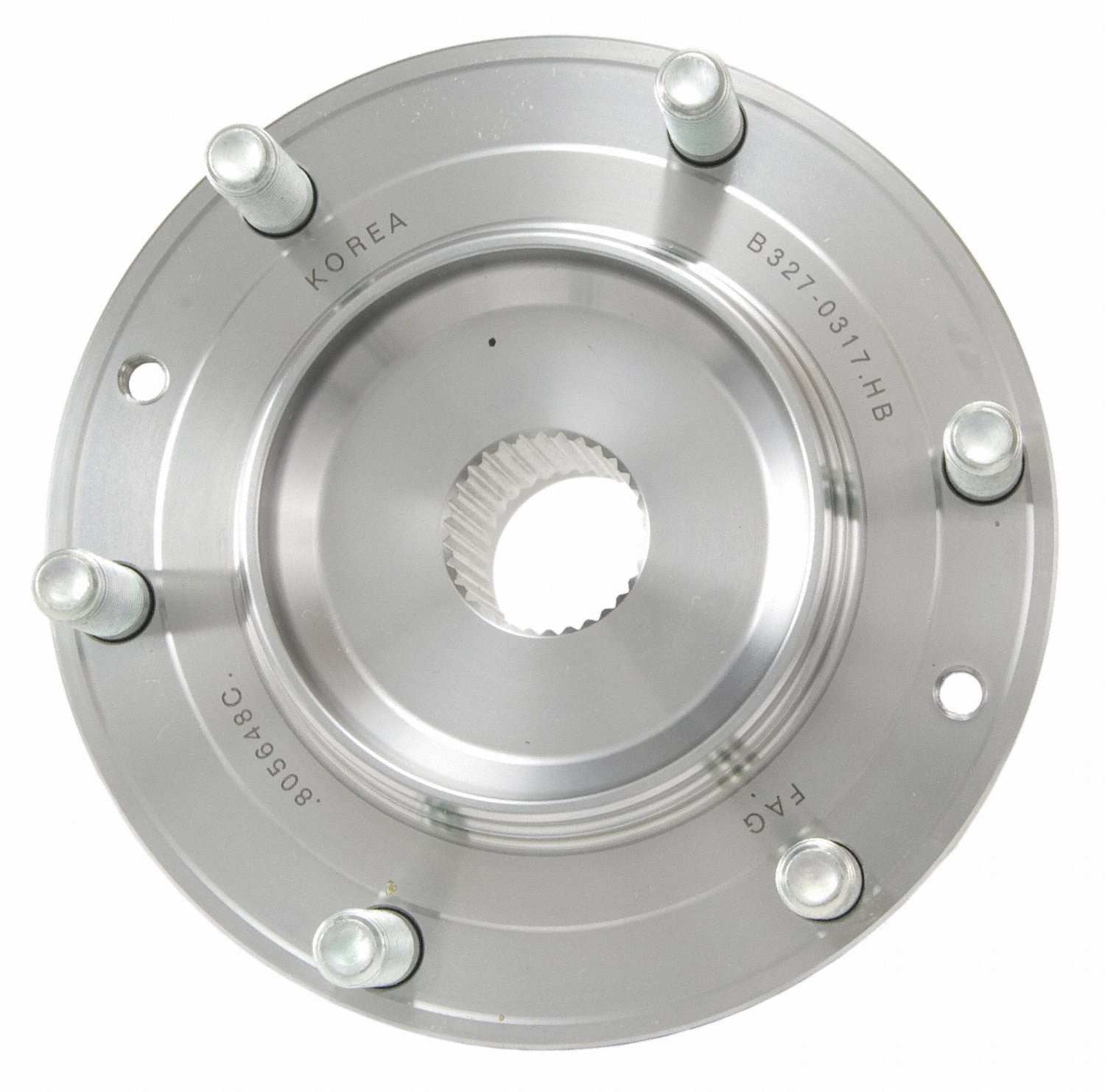

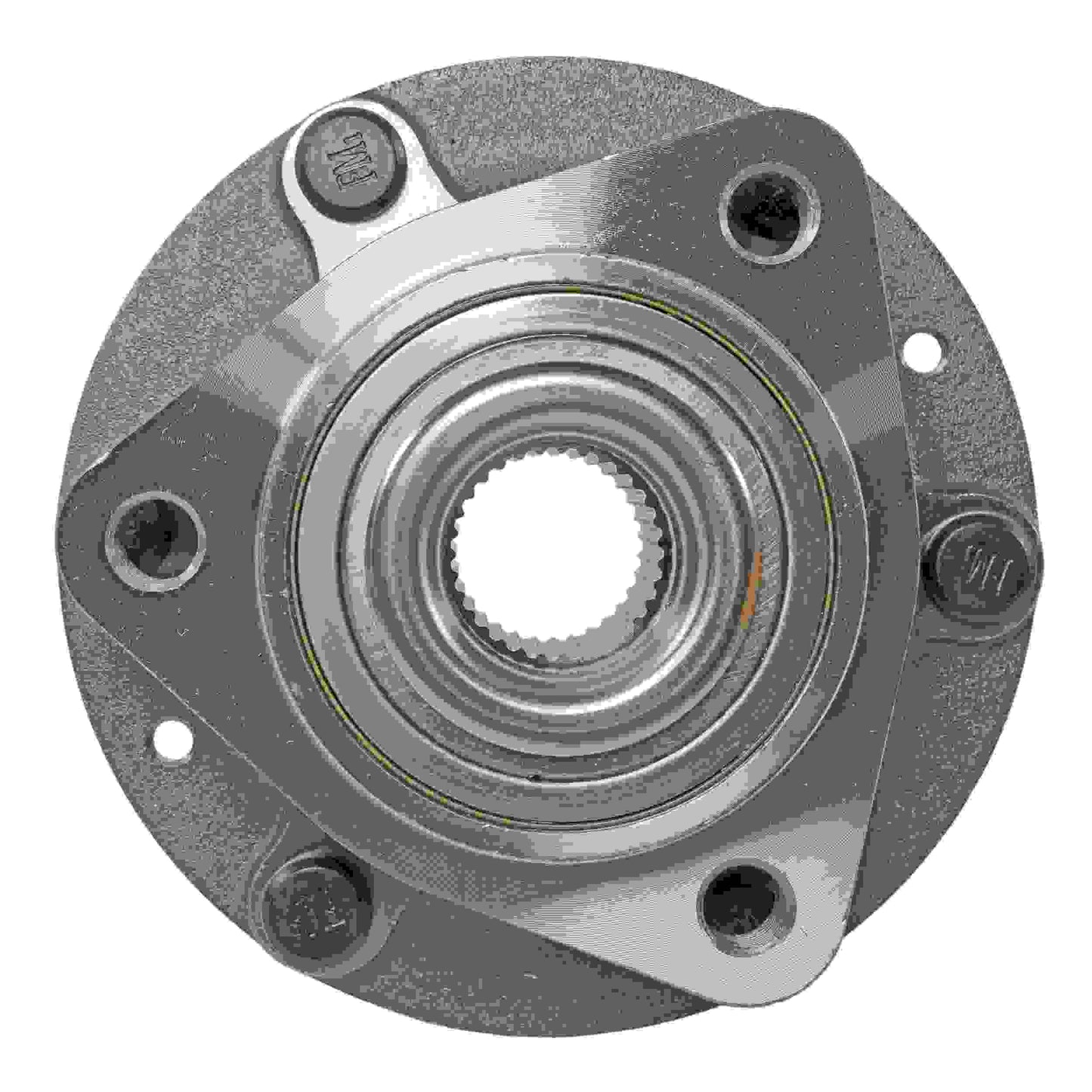

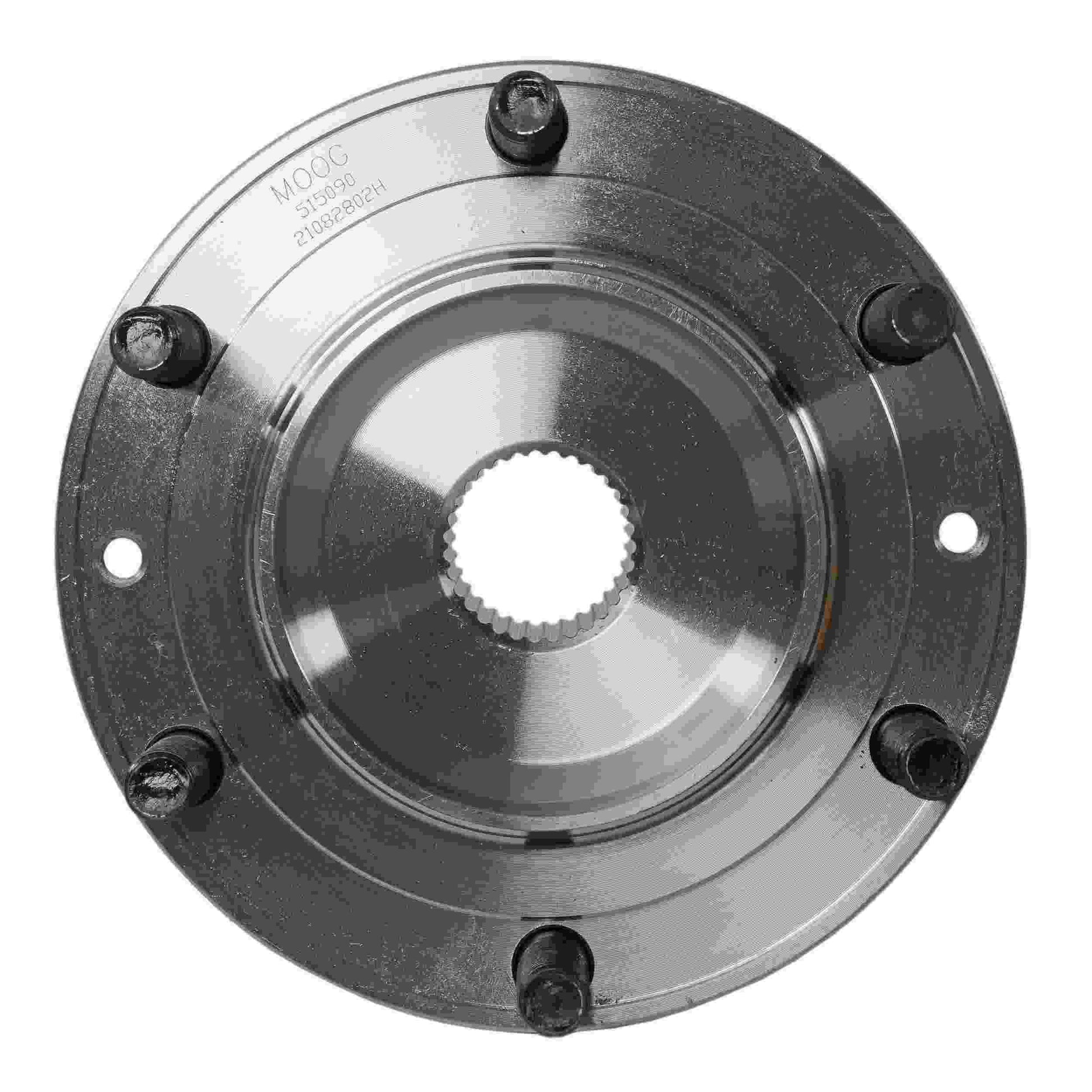

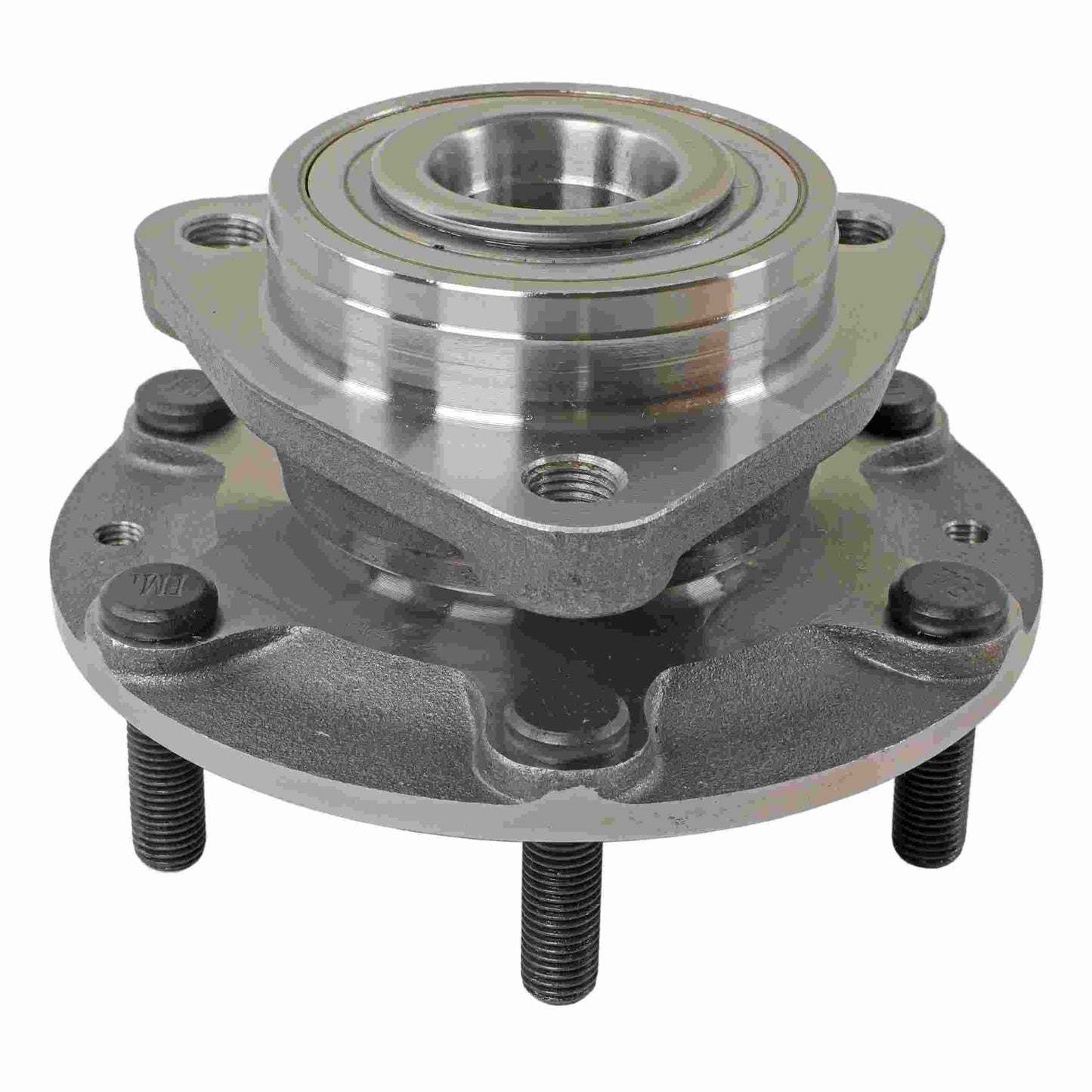

Moog Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

Features:

Innovative roll form design ensures consistent and optimal preload.

Engineered to overcome problems and deliver smooth, reliable performance.

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.

Application specific design

Specifications:

• Flange Bolt Hole Quantity: 3
• Flange Diameter (A): 161.2
• Bolt Circle Diameter (B): 5.500
• Bolt Circle Diameter Metric (B): 139.7
• Bolt Size (C): M12x1.5
• Wheel Pilot Diameter (D): 92.2
• Brake Pilot Diameter (E): 96.2
• Flange Offset (F): 48.2
• Hub Pilot Diameter (G): 89.0
• Bolt Hole MET (I): M14x1.5
• Wheel Stud Quantity: 6
• Number of Splines: 31
• Flange Shape (K): MODIFIED
• ABS Sensor: No
• Location: Front Wheel
