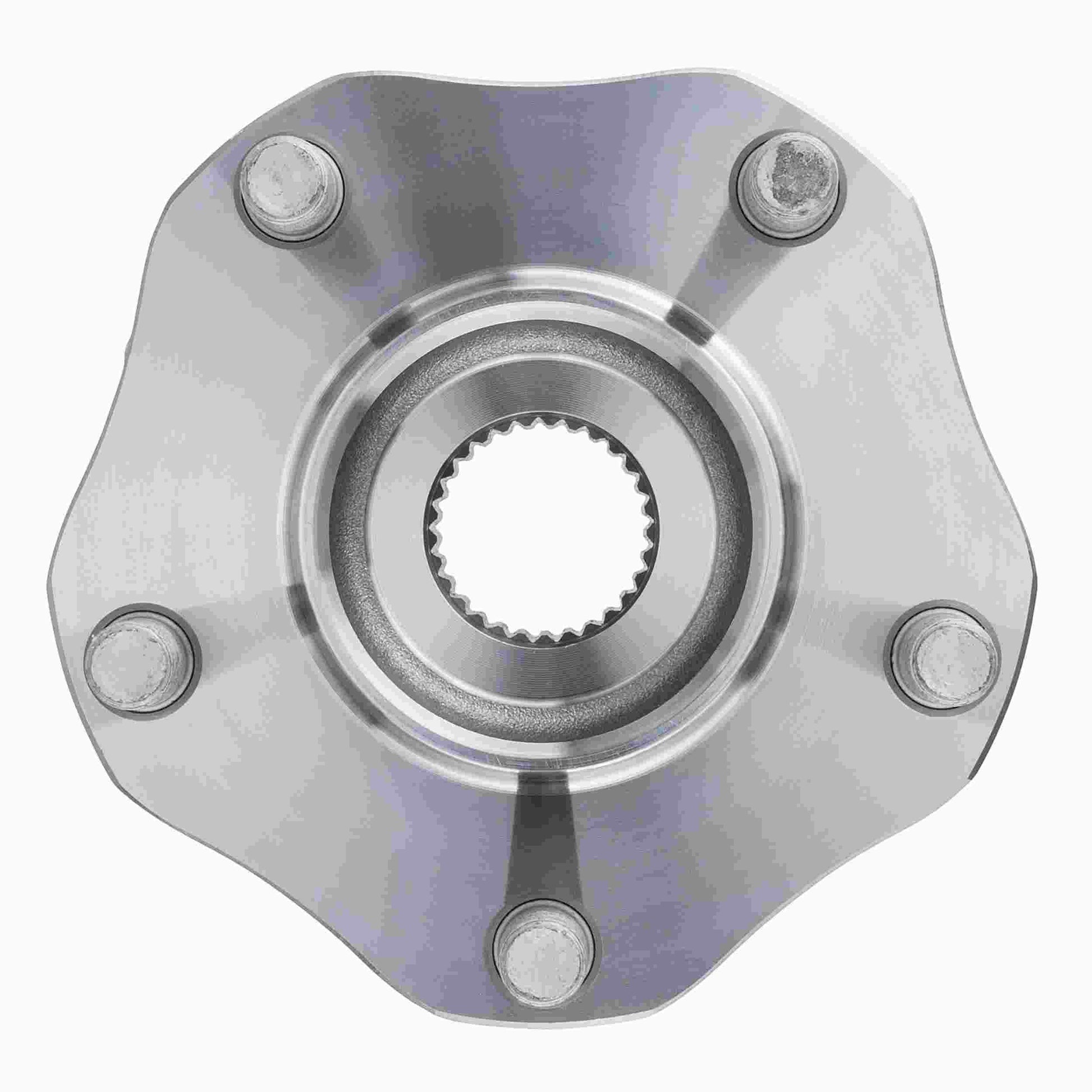

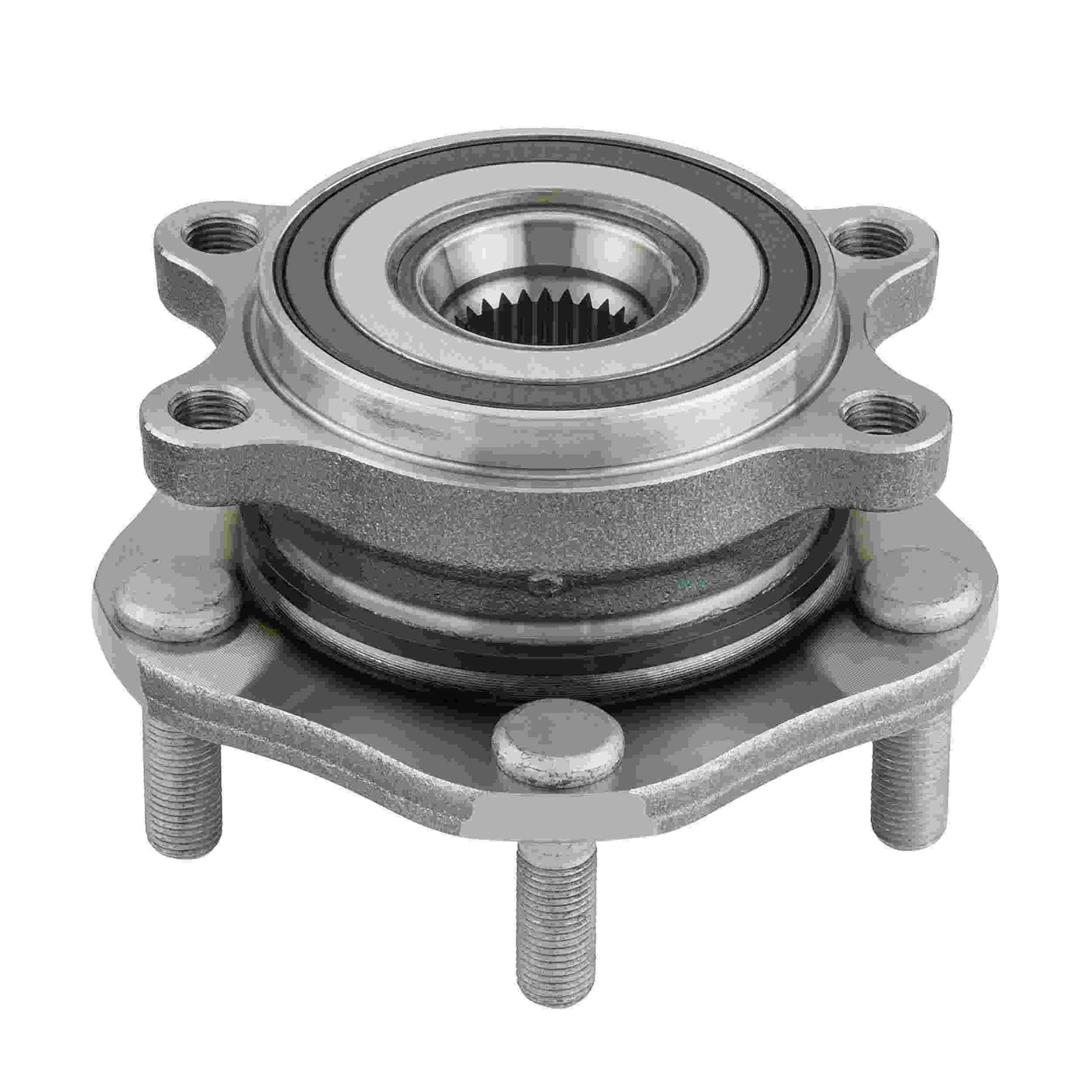

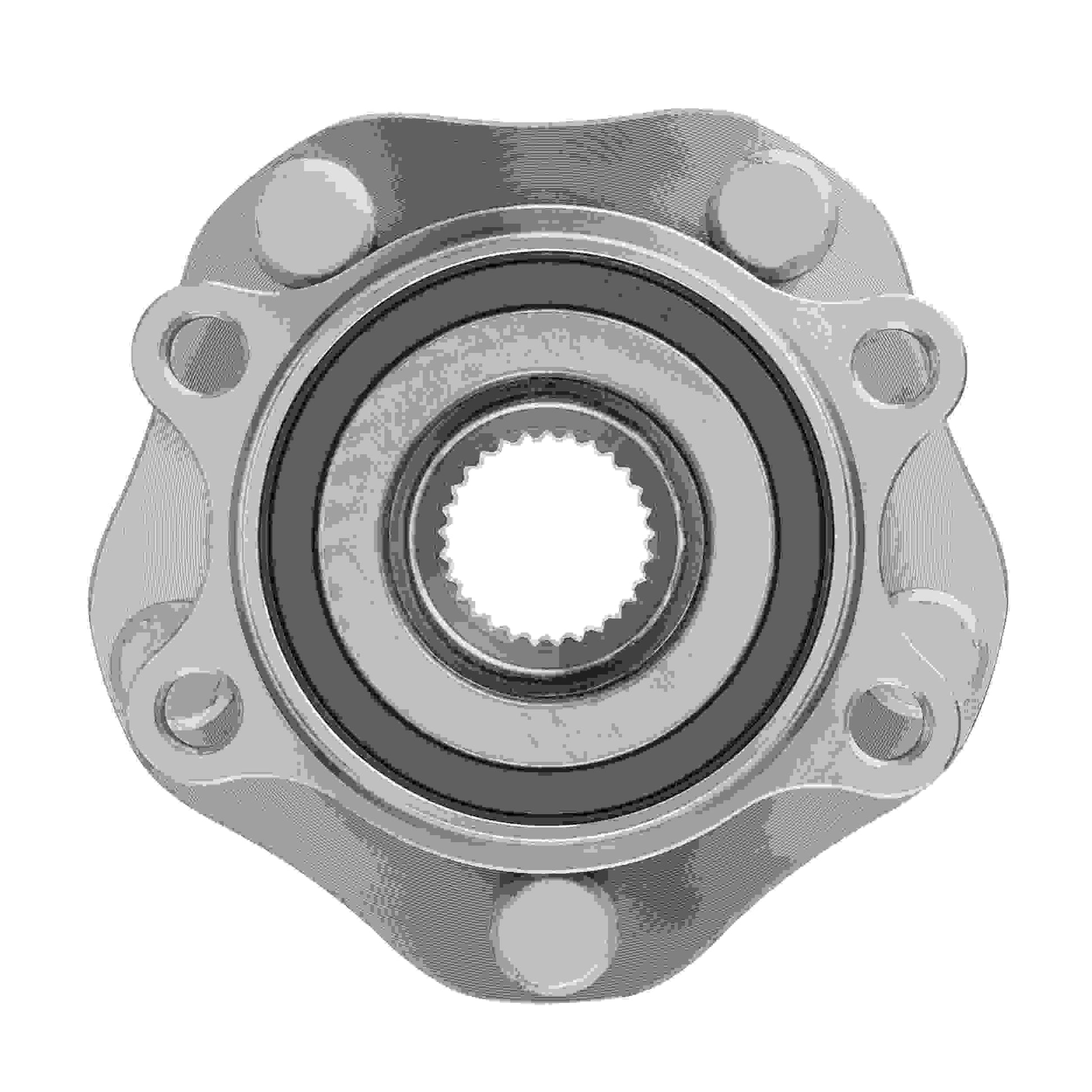

Moog Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

• Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
• Engineered to overcome problems and deliver smooth, reliable performance.
• MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.
• Application specific design

Specifications

Flange Bolt Hole Quantity: 4

Flange Diameter (A): 136.0

Bolt Circle Diameter (B): 4.500

Bolt Circle Diameter Metric (B): 114.9

Bolt Size (C): M12X1.25

Wheel Pilot Diameter (D): 65.9

Brake Pilot Diameter (E): 67.9

Flange Offset (F): 46.9

Hub Pilot Diameter (G): 84.9

Bolt Hole MET (I): M12x1.25

Wheel Stud Quantity: 5

Number of Splines: 29

Flange Shape (K): Rectangle

ABS Sensor: Encoder

Location: Front Wheel

Vehicle Fitments:
