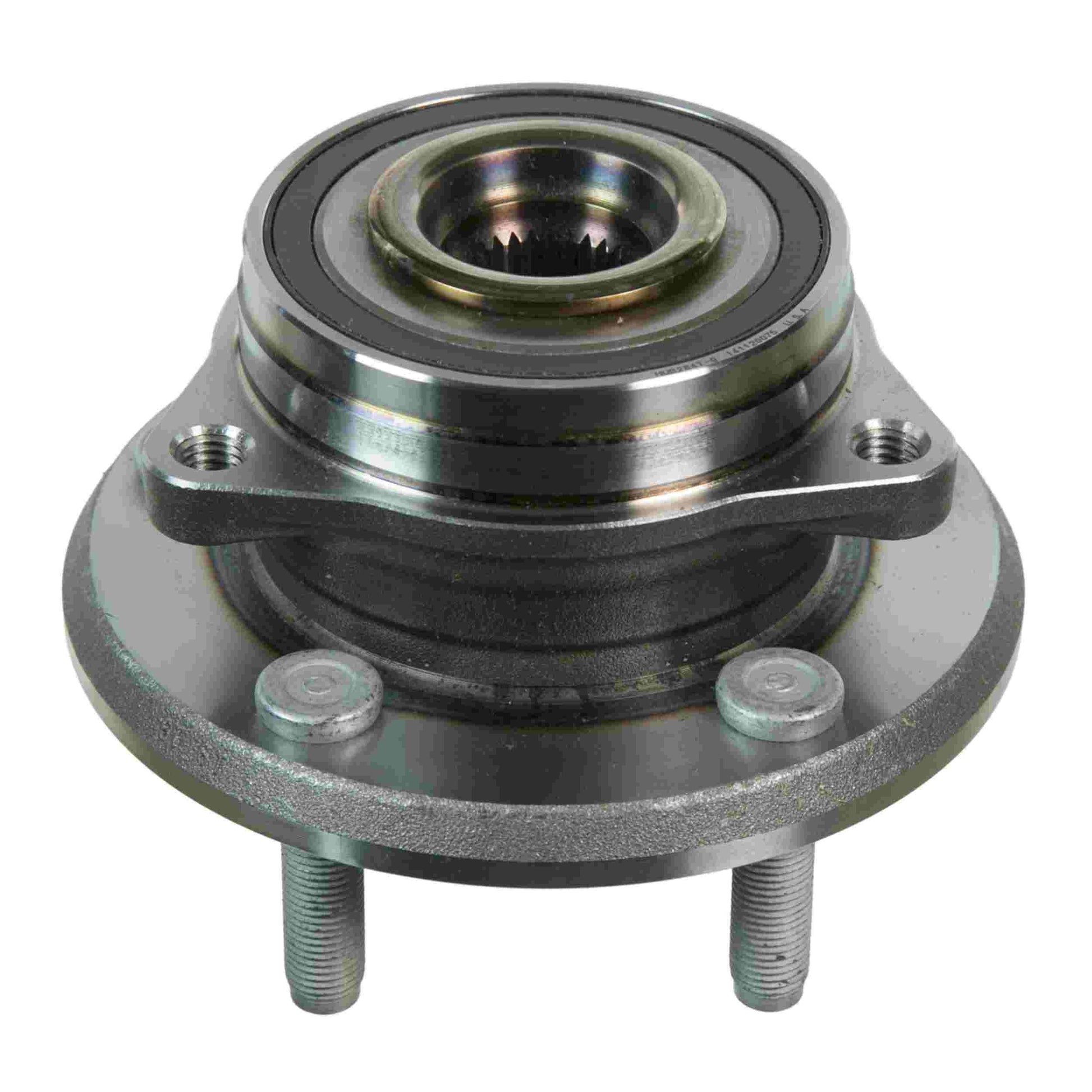

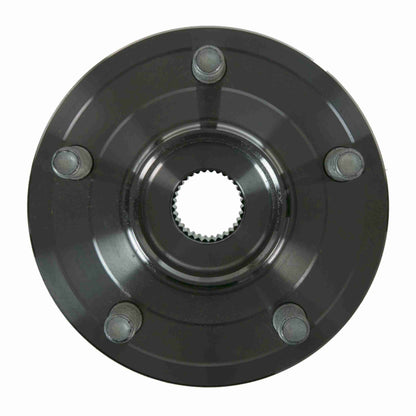

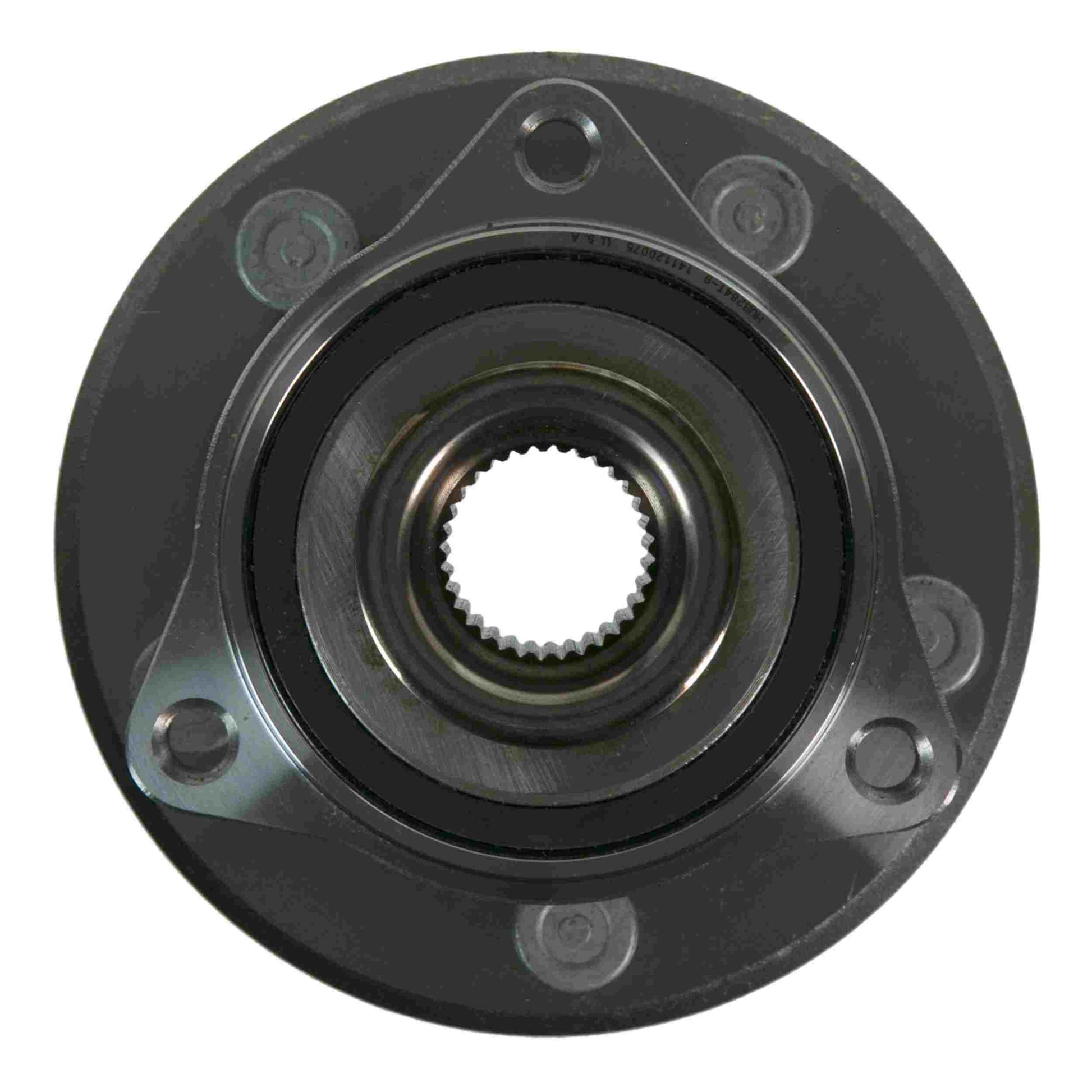

Moog Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

Features:

•  Innovative roll form design ensures consistent and optimal preload.
• Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
•  Engineered to overcome problems and deliver smooth, reliable performance.
•  MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.

Specification:

• Flange Bolt Hole Quantity: 3
• Flange Diameter (A): 164.3
• Bolt Circle Diameter (B):5.000
• Bolt Circle Diameter Metric (B): 127.0
• Bolt Size (C): M14x1.5
• Wheel Pilot Diameter (D): 71.4
• Brake Pilot Diameter (E): 72.0
• Flange Offset (F): 52.0
• Hub Pilot Diameter (G): 102.3
• Bolt Hole MET (I): M12x1.75
• Wheel Stud Quantity: 5
• Number of Splines: 32
• Flange Shape (K):TRIANGLE
• ABS Sensor: Encoder
• Location: Front Wheel

Vehicle Fitments:
