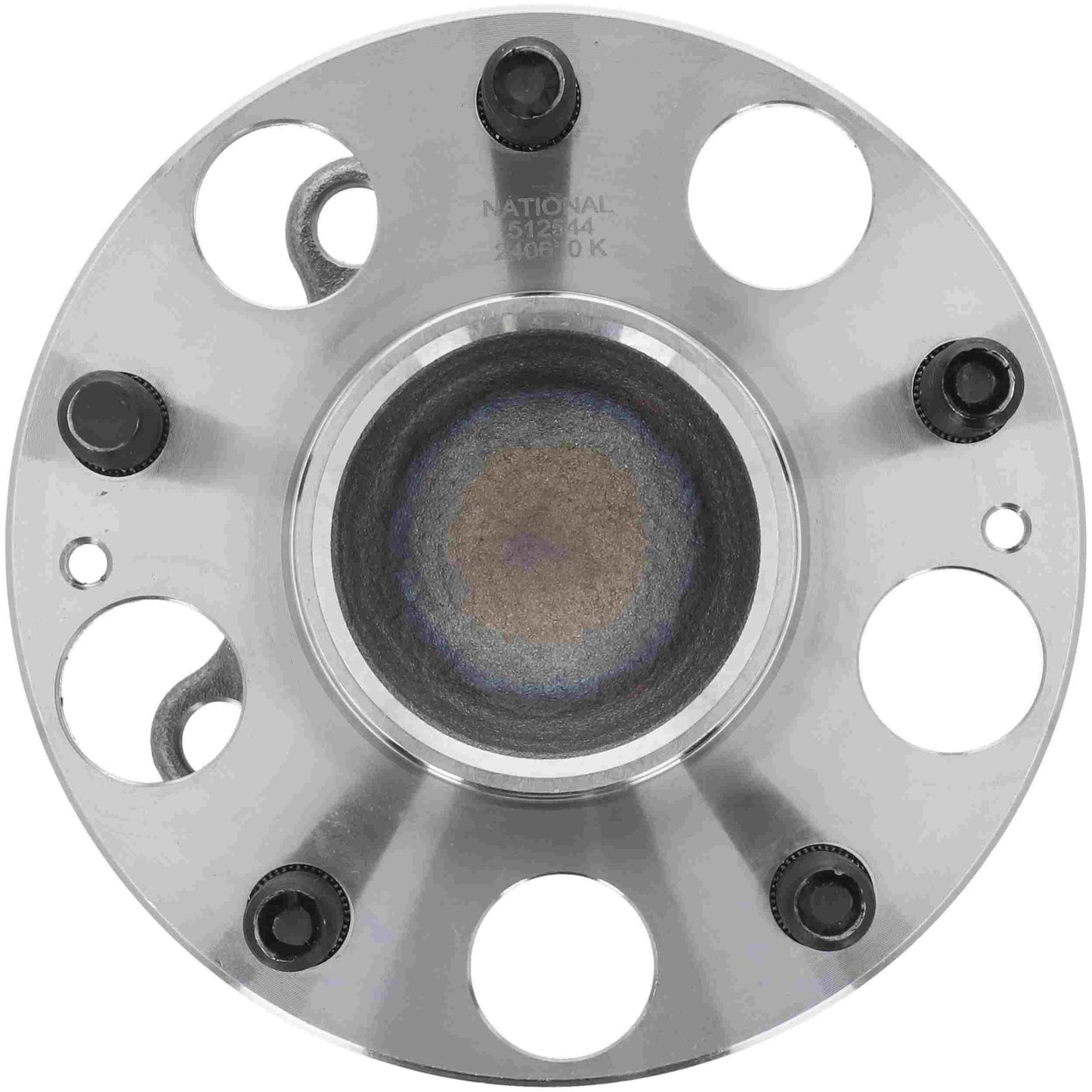

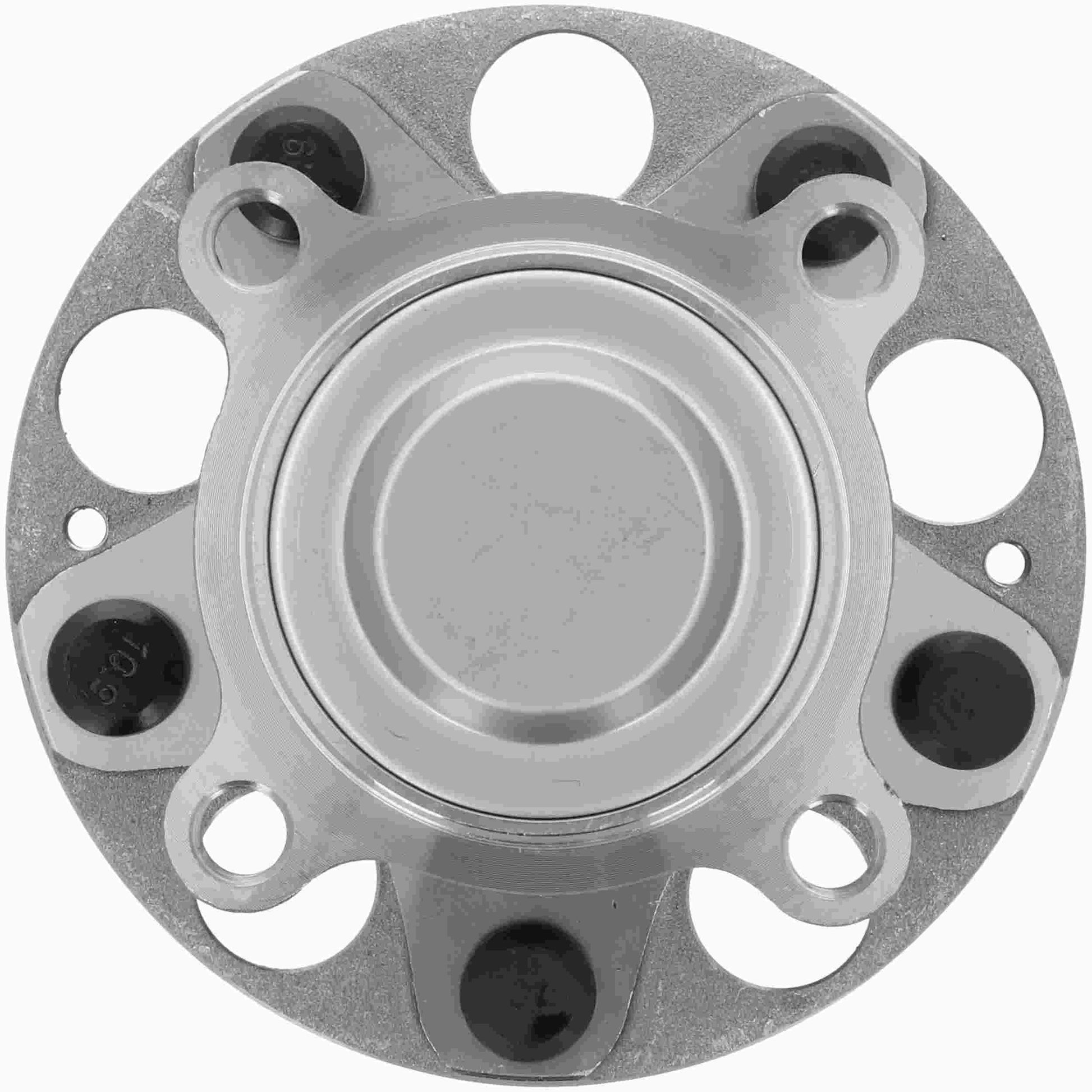

Moog Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

• Innovative roll form design ensures consistent and optimal preload.
• Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
• Engineered to overcome problems and deliver smooth, reliable performance.
• MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.

Specifications

Flange Bolt Hole Quantity: 4

Flange Diameter (A): 139.3

Bolt Circle Diameter Metric (B): 114.3

Bolt Size (C): M12x1.5

Wheel Pilot Diameter (D): 64.1

Brake Pilot Diameter (E): 64.1

Flange Offset (F): 58.8

Hub Pilot Diameter (G): 72.0

Bolt Hole MET (I): M12x1.25

Wheel Stud Quantity: 5

ABS Sensor: Encoder

Vehicle Fitments:
