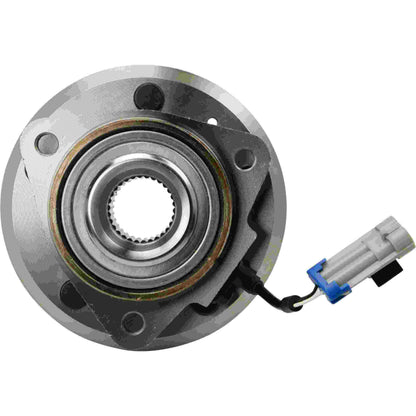

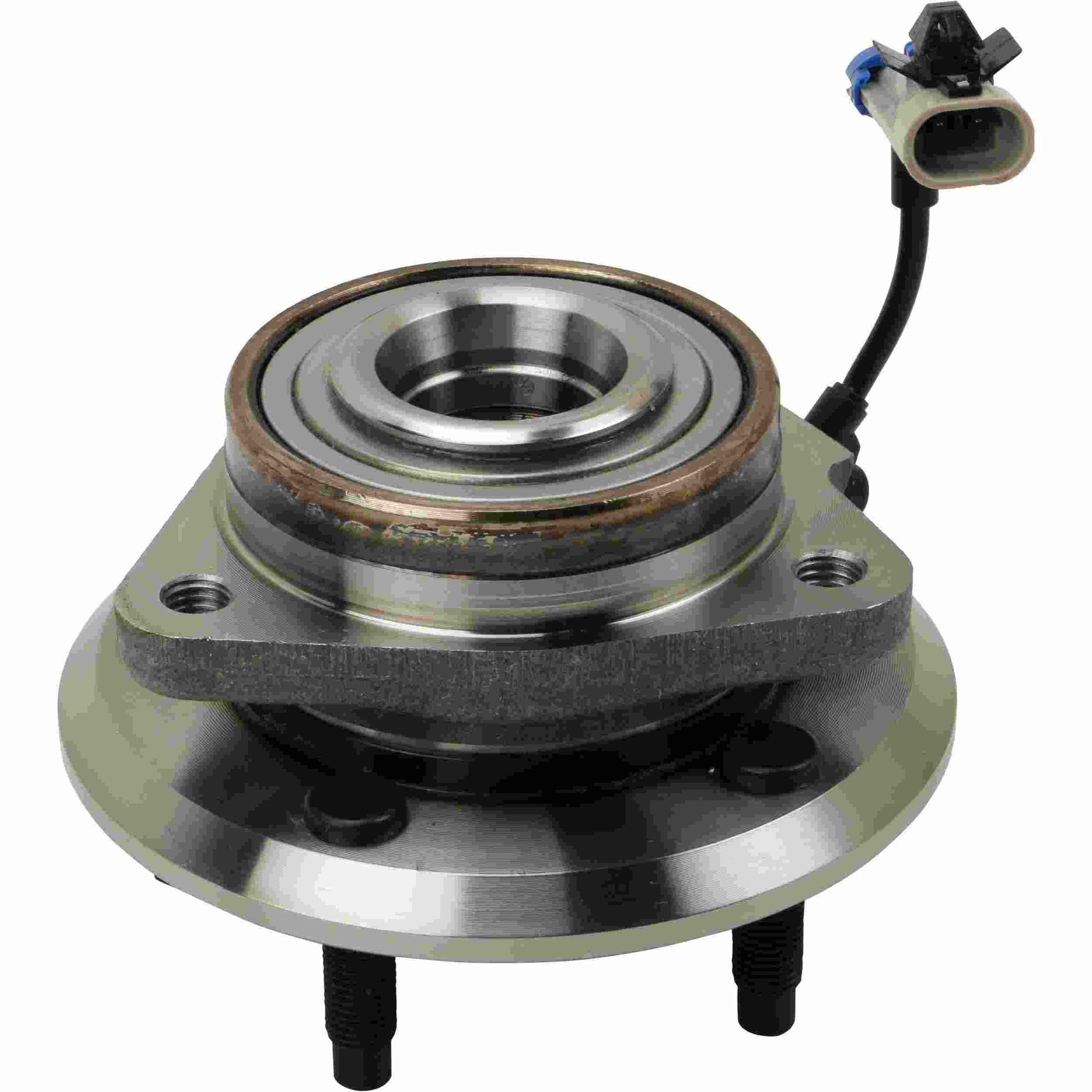

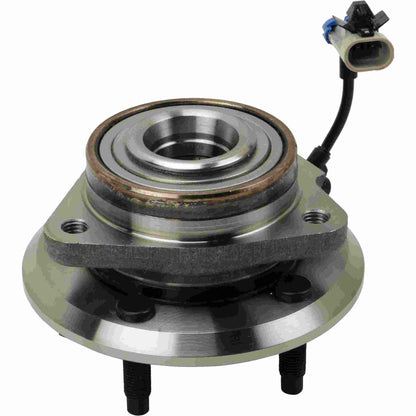

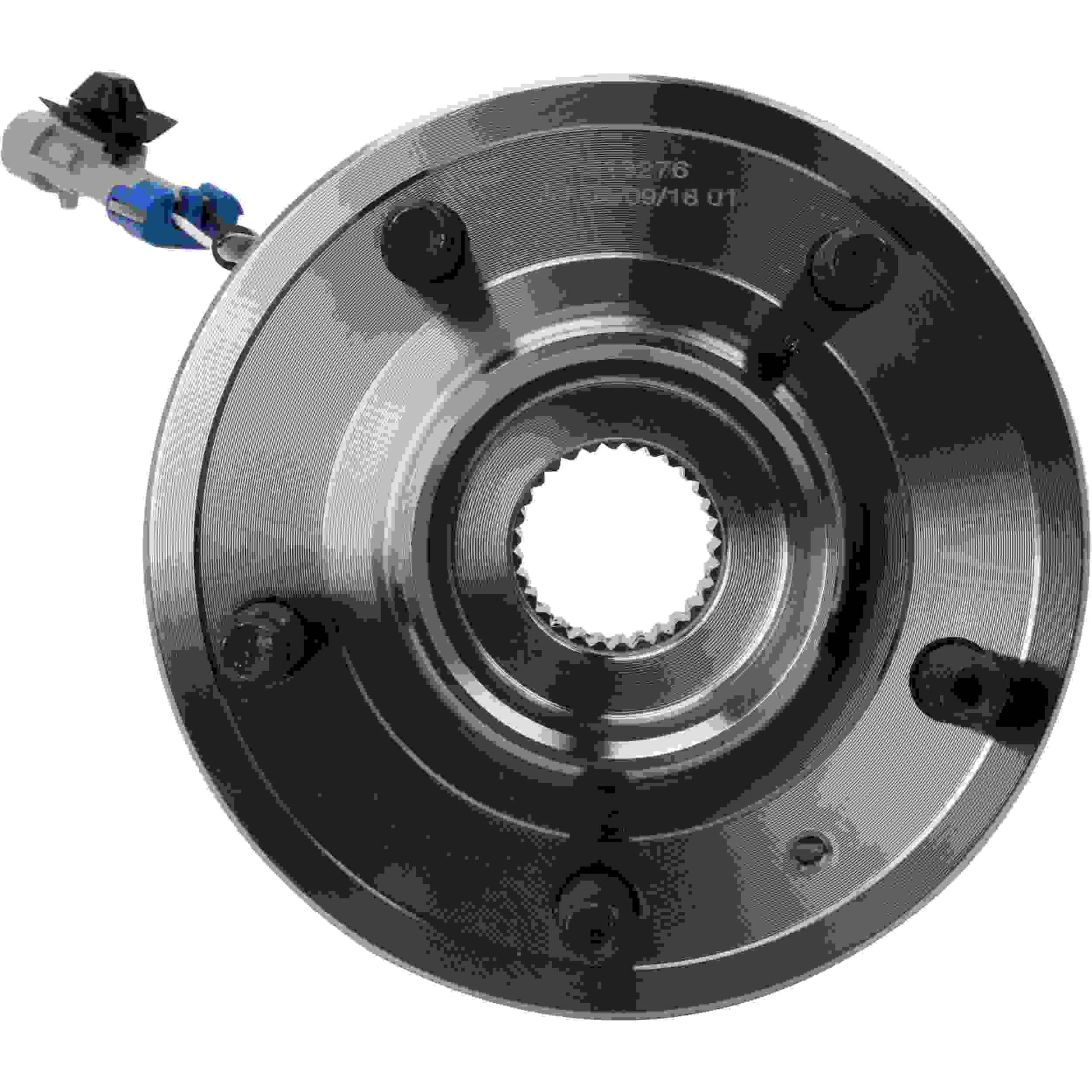

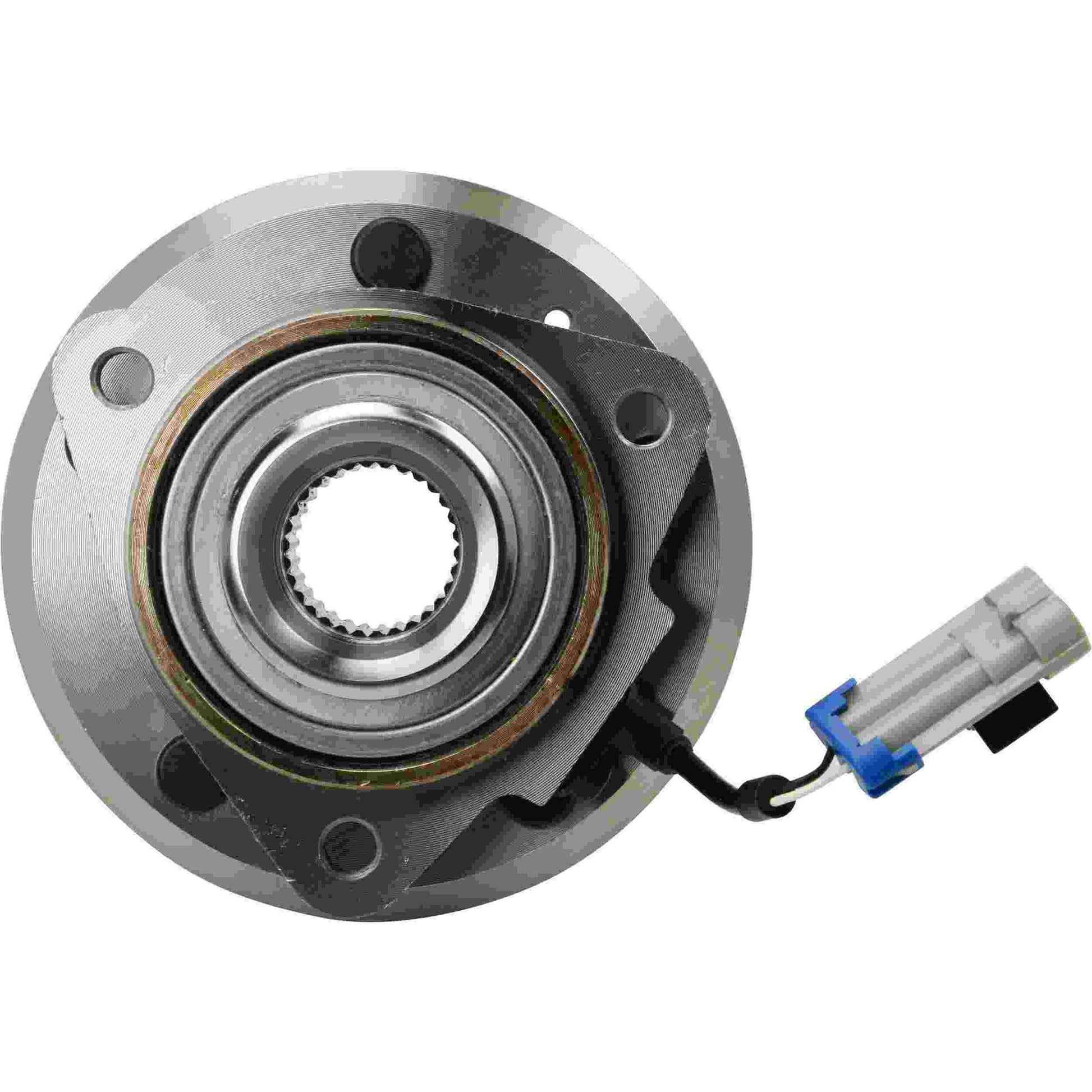

Moog Hub Assembly

Moog Hub Assembly

sku: 1EFP2 | mpn: 513276
Regular price $452.85
Regular price $452.85 Sale price $452.85
Sale Sold out
Shipping calculated at checkout.

25 in stock

Quantity
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping
MOOG hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.
 Innovative roll form design ensures consistent and optimal preload.
 Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
 Engineered to overcome problems and deliver smooth, reliable performance.
 MOOG hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.

Specifications

Hub Assemblies
Bolt Quantity:
3
Flange Diameter:
151.0
Bolt Circle Diameter:
4.500
Bolt Circle Diameter Metric:
115.0
Bolt Size:
M12x1.5
Wheel Pilot Diameter:
70.1
Brake Pilot Diameter:
70.6
Flange Offset:
42.1
Hub Pilot Diameter:
91.3
Bolt Hole MET:
M12x1.75
Bolt Hole Quantity:
5
Number of Splines:
30
Flange Shape:
MODIFIED

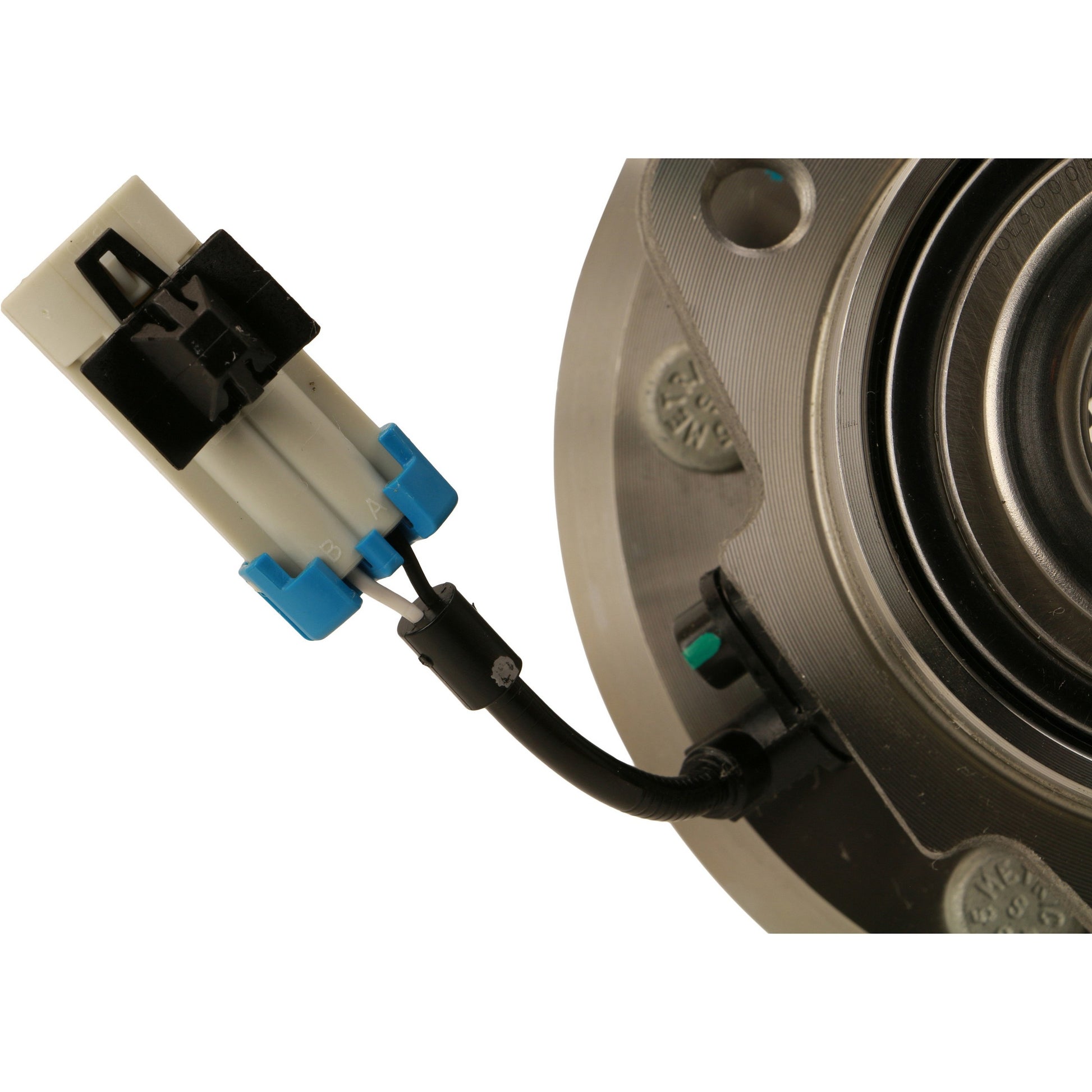

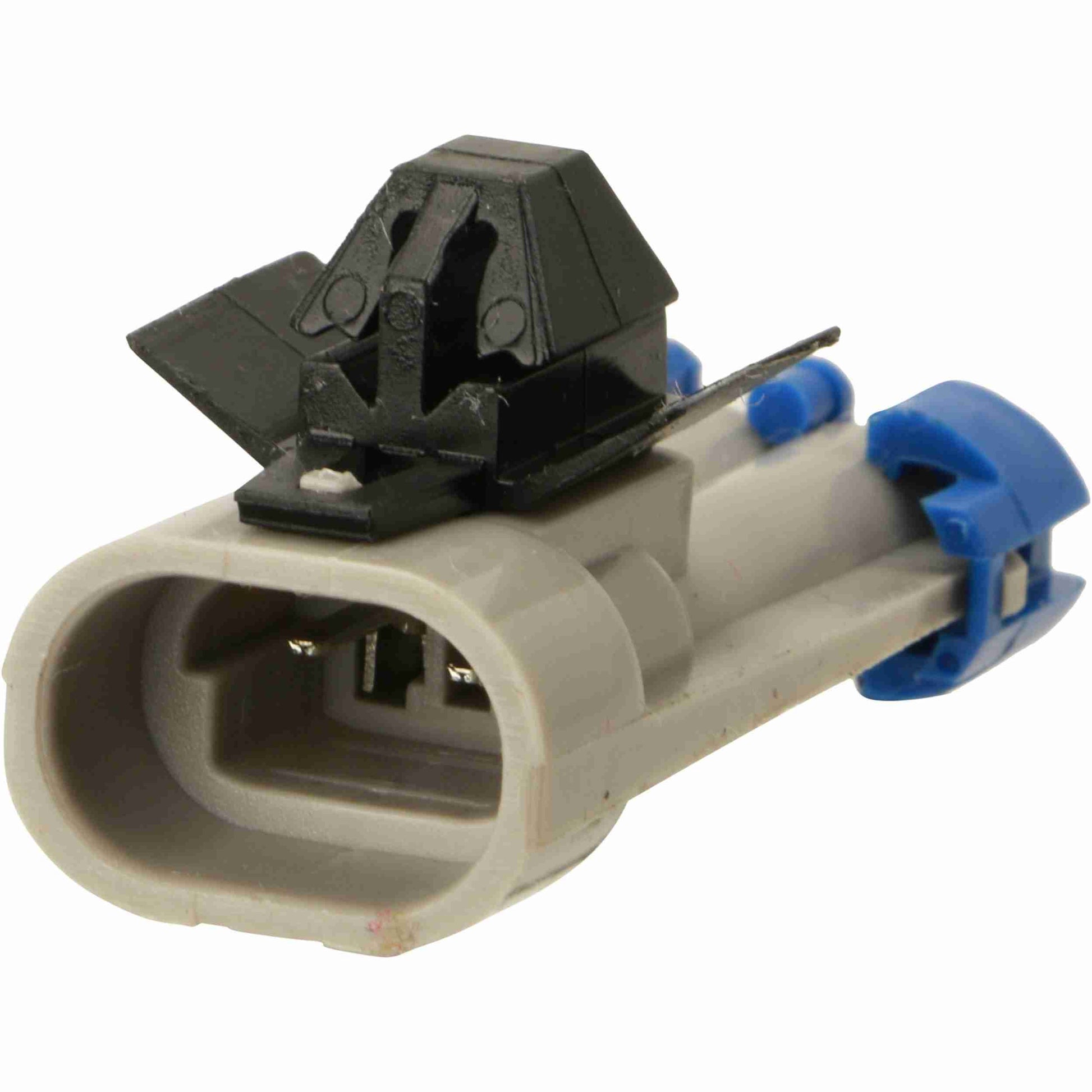

ABS Sensor:
Cable
Location:
Front Wheel

Applications

PASSENGER CAR & LIGHT TRUCK
Make
Model
Year Range
Position
Drive Wheel
Veh. Qty.
Engine Base
Engine VIN
Engine Desg.
Chevrolet Captiva Sport 2015-2012 Front 2
Chevrolet Equinox 2009-2007 Front 2
Pontiac Torrent 2009-2007 Front 2
Saturn Vue 2010-2008 Front 2
Suzuki XL-7 2009-2007 Front 2


Vehicle Fitments:

Year Make Model Submodel
2012 - 2015 Chevrolet Captiva Sport LTZ, LT, LS
2007 - 2009 Chevrolet Equinox LS, LT
2008 - 2009 Chevrolet Equinox Sport, LTZ
2007 - 2009 Pontiac Torrent Base
2008 Pontiac Torrent GT
2008 - 2009 Pontiac Torrent GXP
2007 - 2008 Pontiac Torrent LS, LT
2007 Pontiac Torrent Sport
2008 Saturn Vue Green Line
2009 Saturn Vue Hybrid
2008 - 2009 Saturn Vue Red Line
2008 - 2010 Saturn Vue XE, XR
2007 - 2008 Suzuki XL-7 GL, Base
2008 Suzuki XL-7 JX
2007 - 2009 Suzuki XL-7 Limited, GLS, Luxury
2008 - 2009 Suzuki XL-7 Premium, JLX
