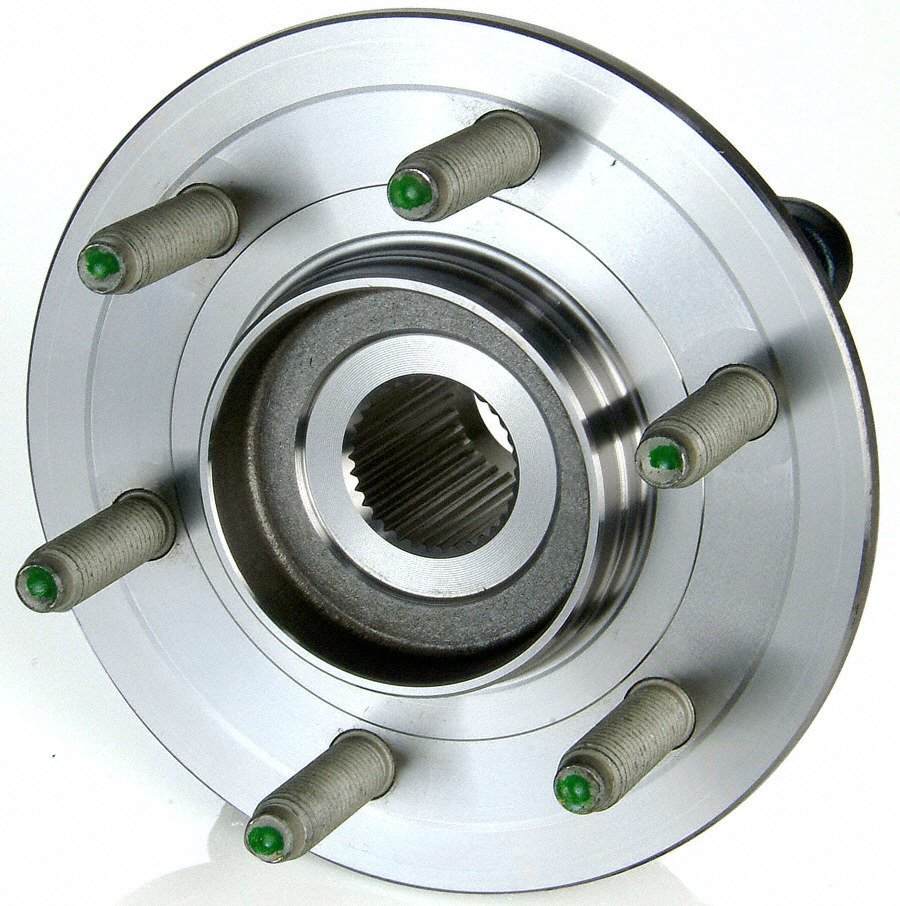

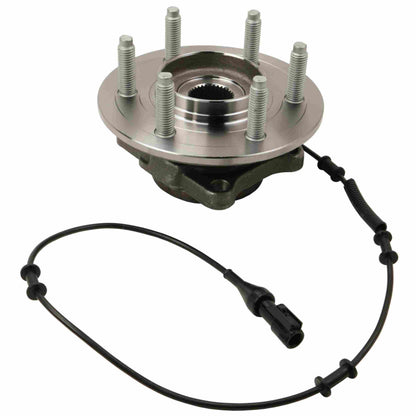

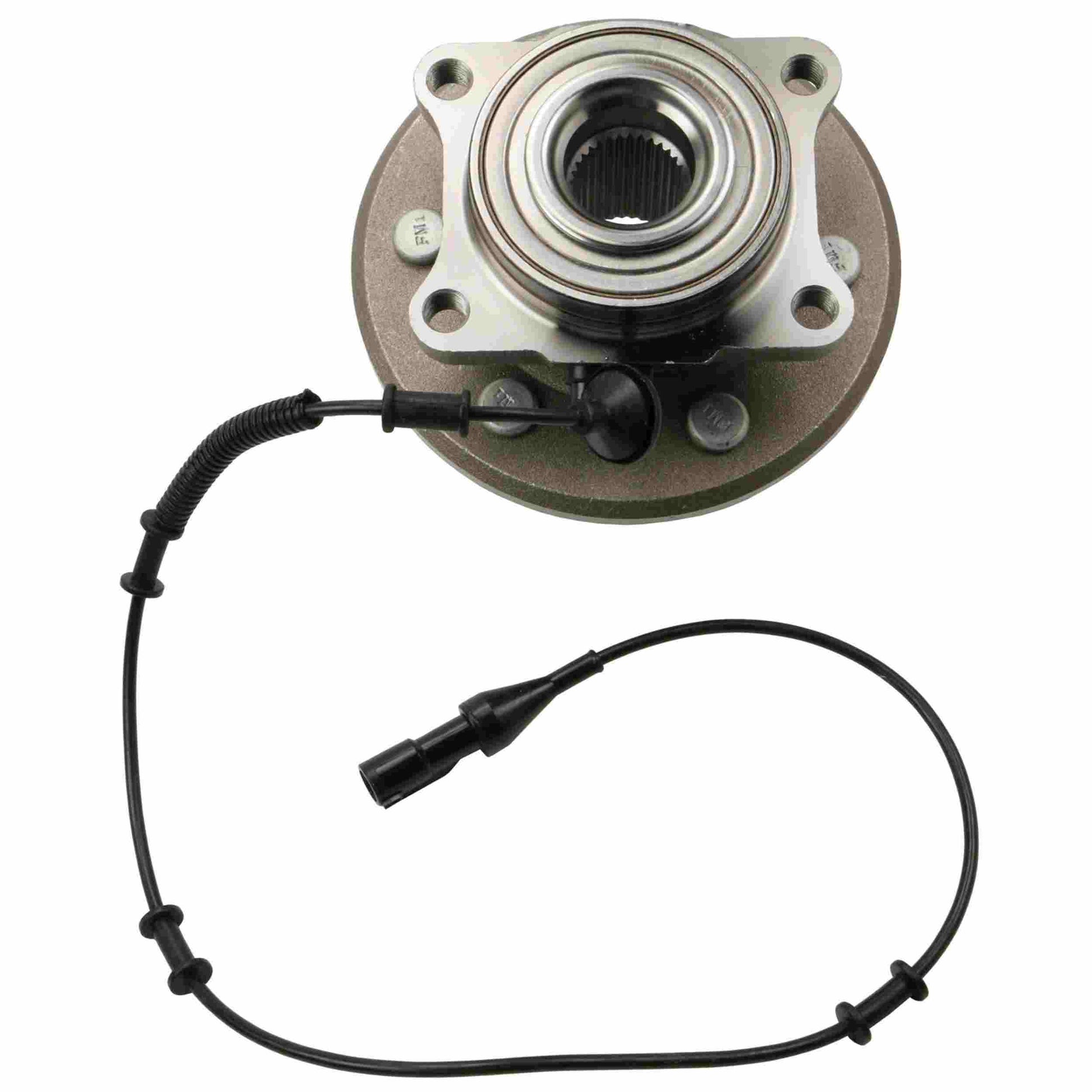

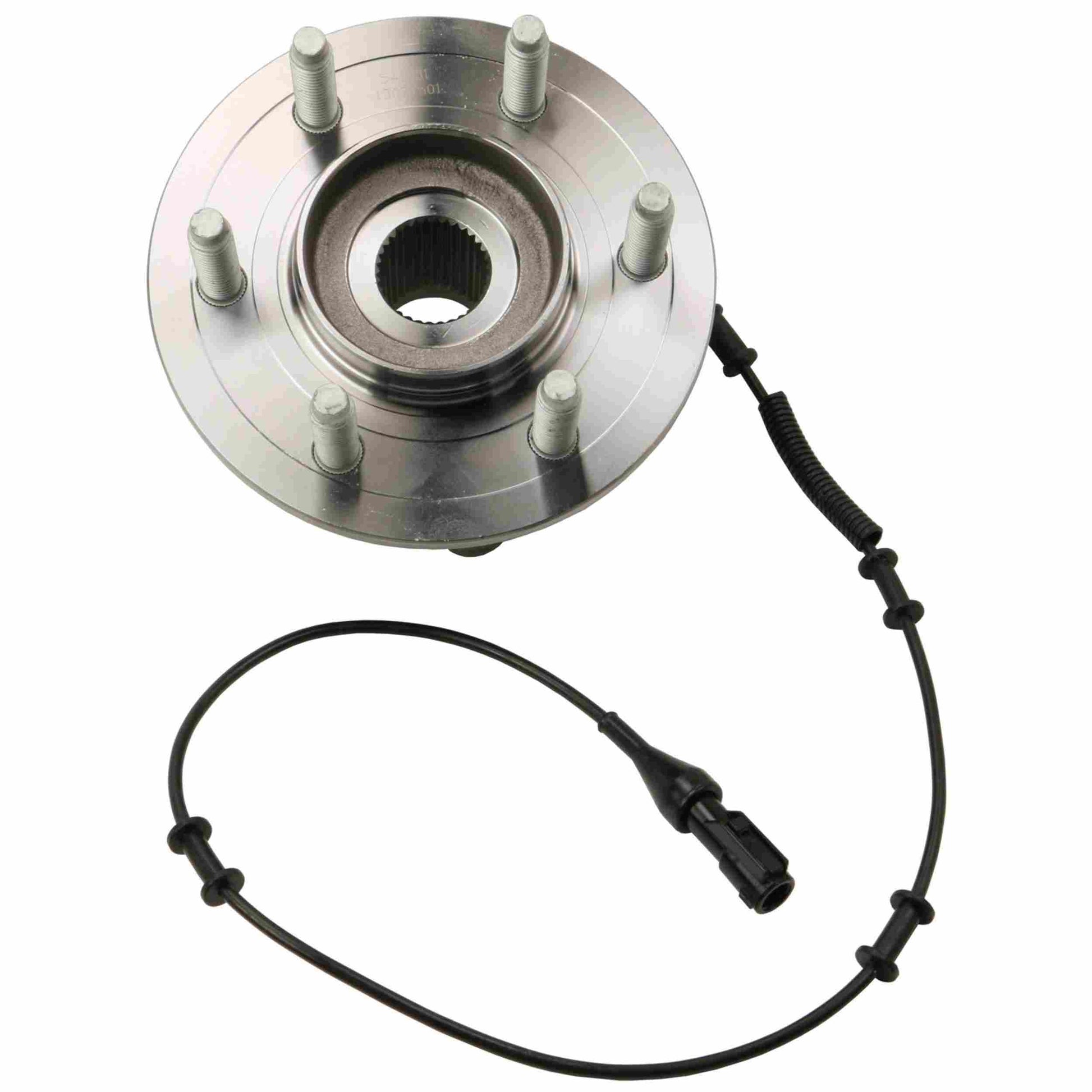

Moog Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

Features:

Innovative roll form design ensures consistent and optimal preload.

Engineered to overcome problems and deliver smooth, reliable performance.

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.

Application specific design

Specifications:

• Flange Bolt Hole Quantity: 4
• Flange Diameter (A): 182.8
• Bolt Circle Diameter (B): 5.305
• Bolt Circle Diameter Metric (B): 135.0
• Bolt Size (C): M14x2.0
• Wheel Pilot Diameter (D): 86.8
• Brake Pilot Diameter (E): 90.0
• Flange Offset (F): 55.5
• Hub Pilot Diameter (G): 99.3
• Bolt Hole MET (I): M14x1.5
• Wheel Stud Quantity: 6
• Number of Splines: 33
• Flange Shape (K): RECTANGLE

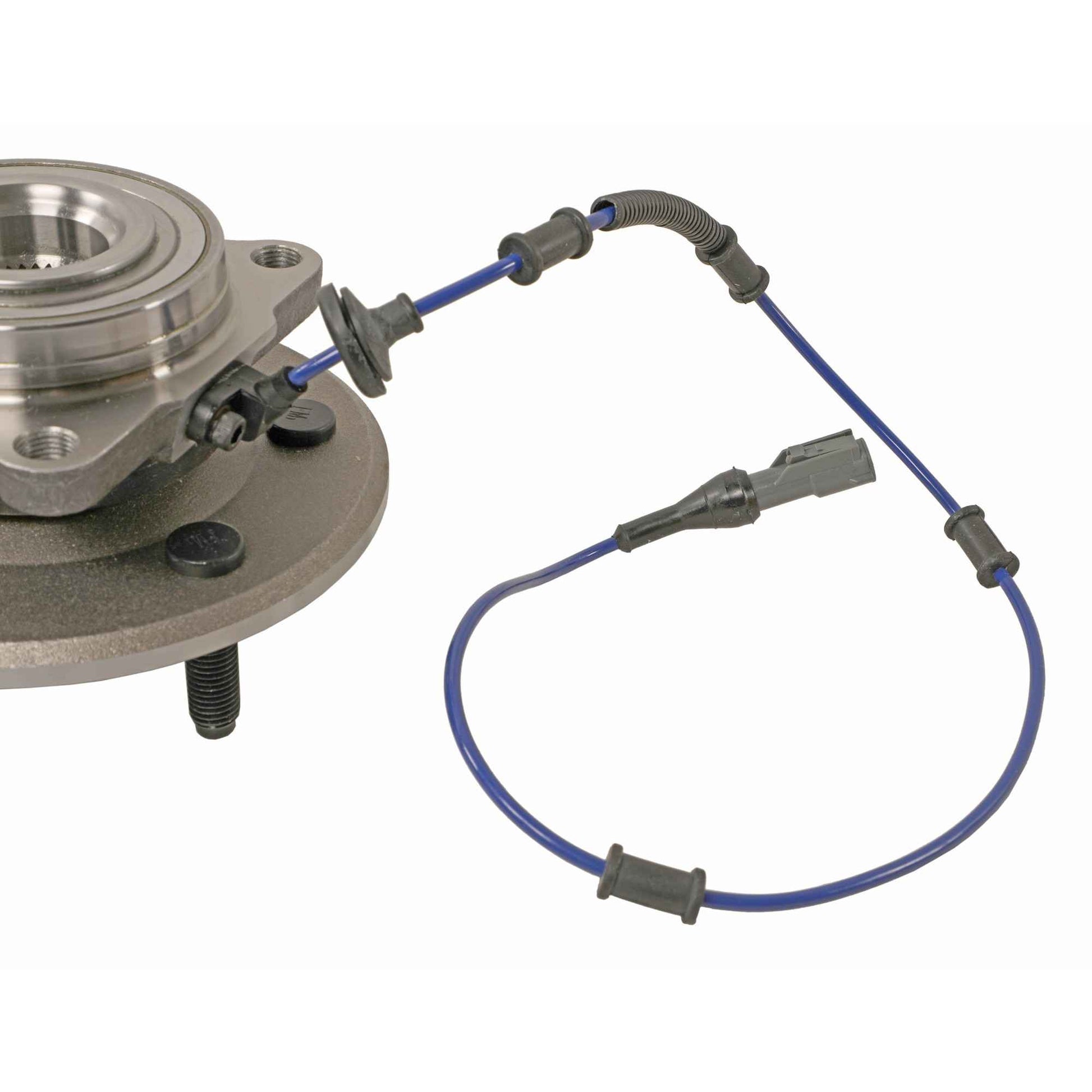

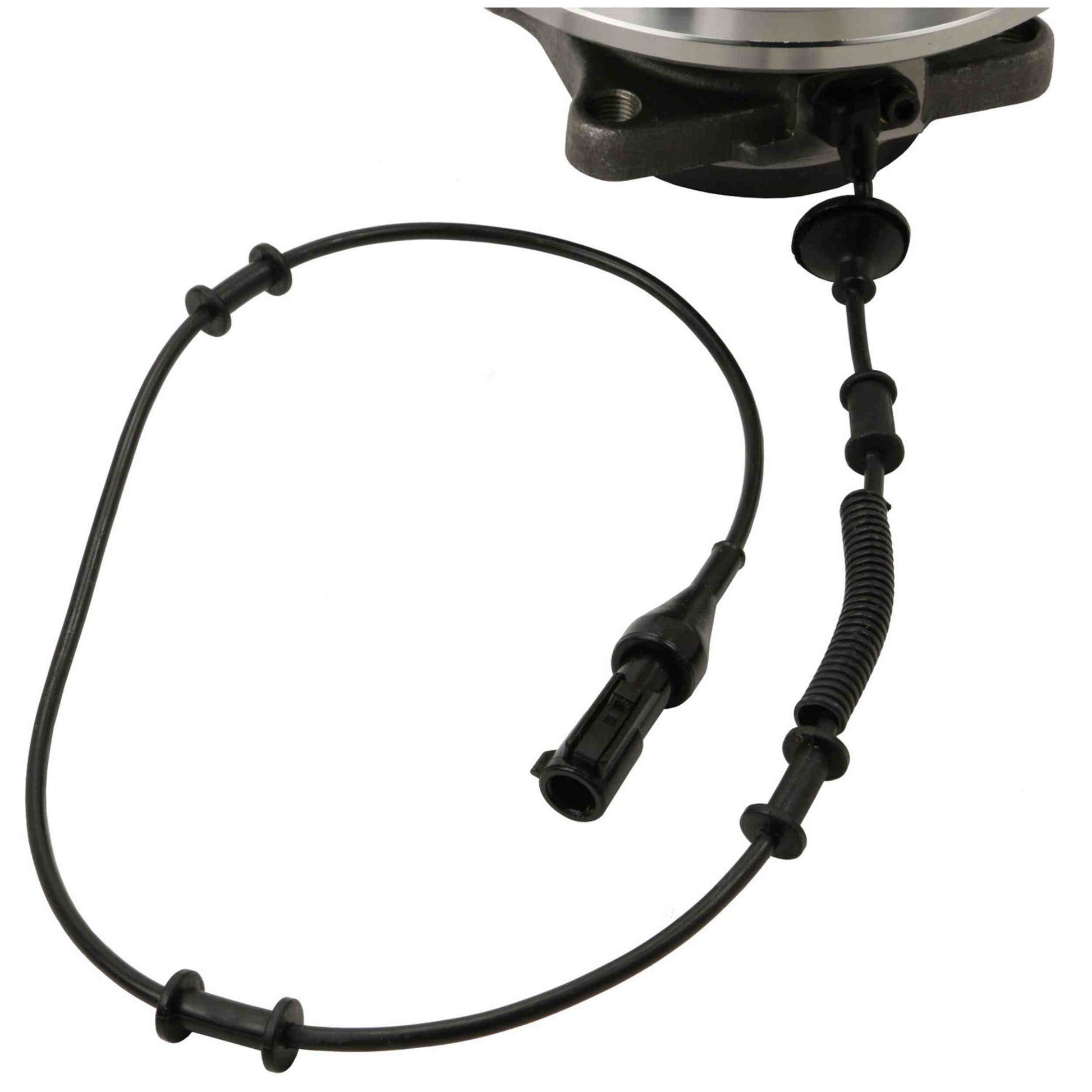

• ABS Sensor: Cable
• Location: Rear Wheel

Vehicle Fitments:
