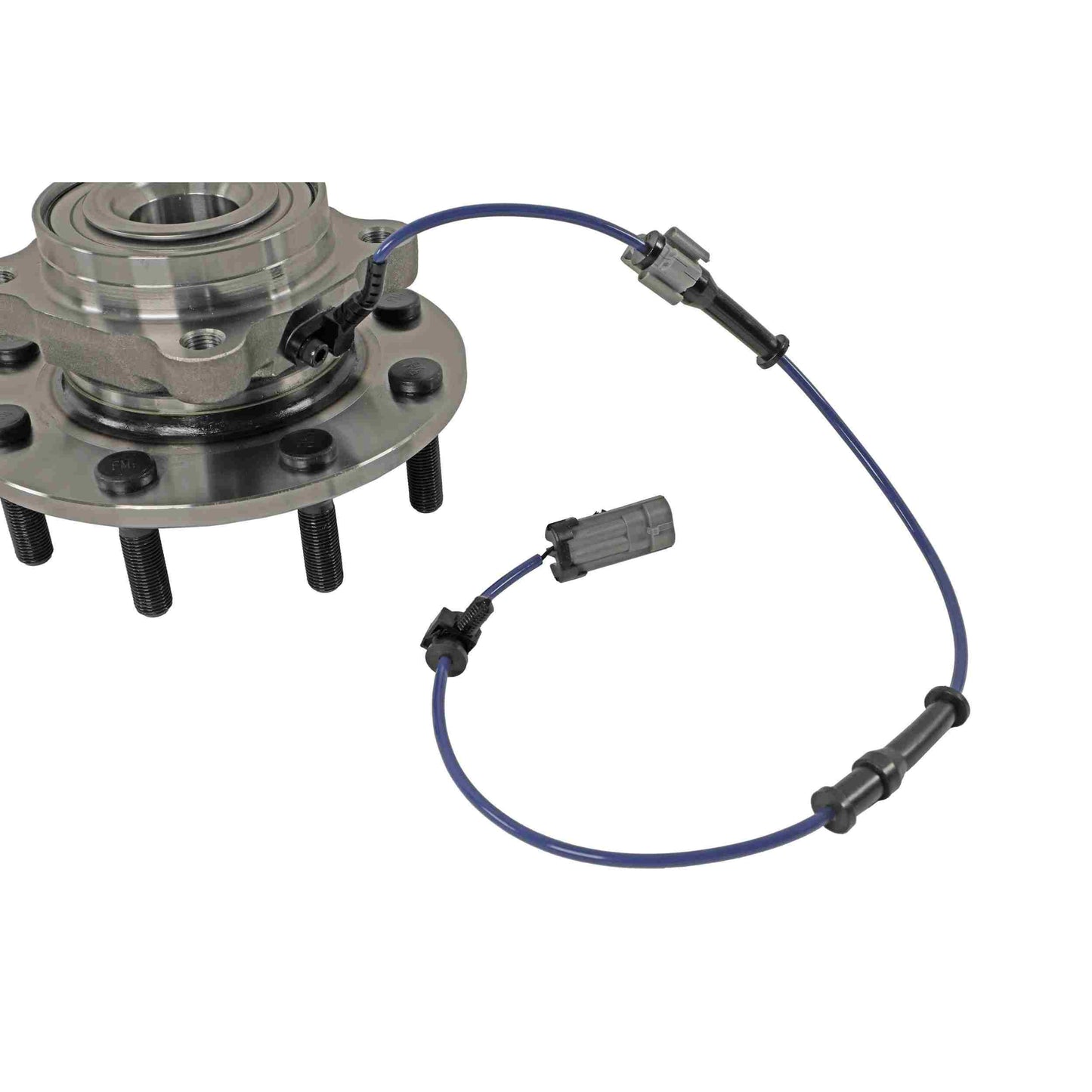

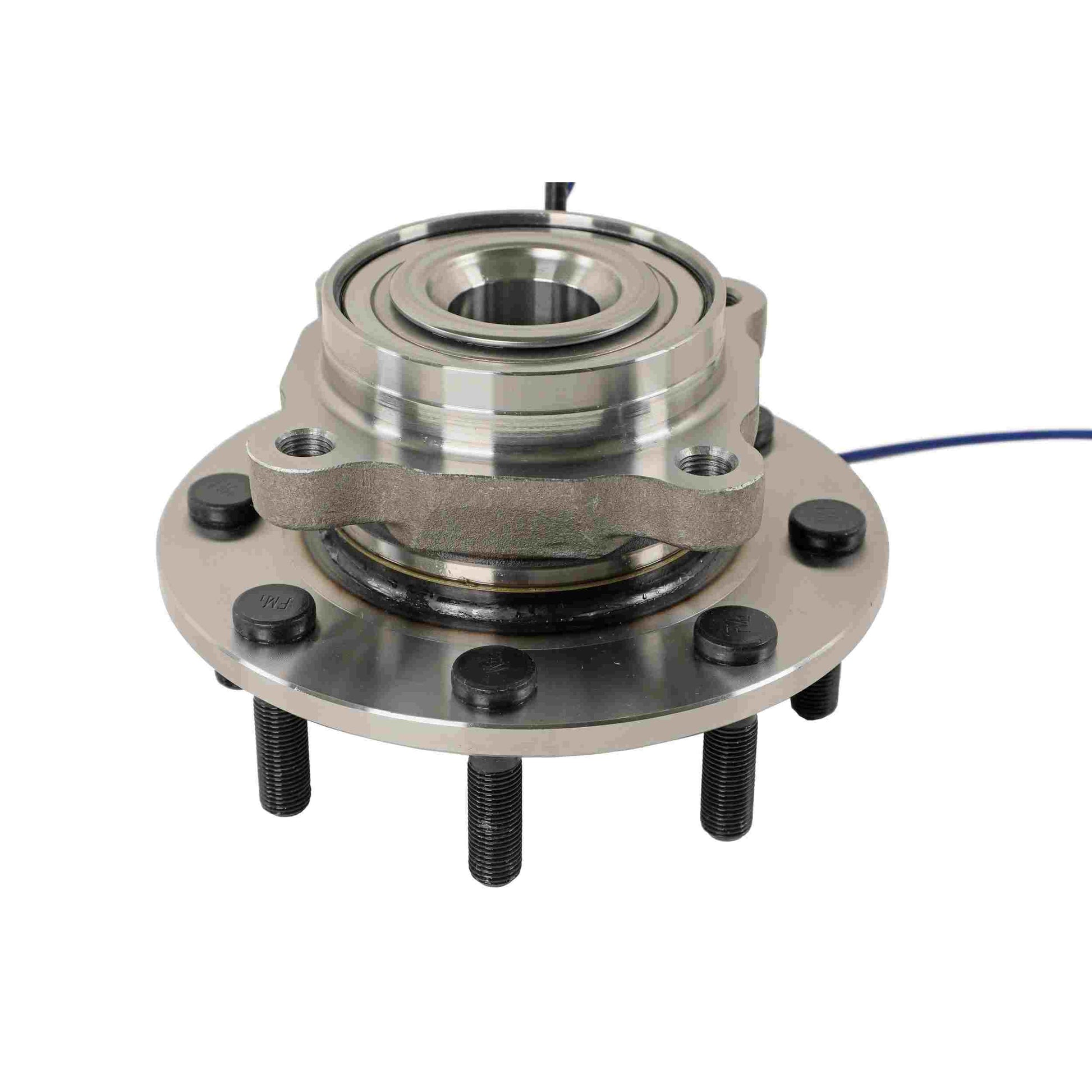

Moog Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

Features:

Innovative roll form design ensures consistent and optimal preload.

Engineered to overcome problems and deliver smooth, reliable performance.

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.

Application specific design

Specifications:

• Flange Bolt Hole Quantity: 4
• Flange Diameter (A): 199.3
• Bolt Circle Diameter (B): 6.500
• Bolt Circle Diameter Metric (B): 165.1
• Bolt Size (C): M14X1.5
• Wheel Pilot Diameter (D): 116.7
• Brake Pilot Diameter (E):117.9
• Flange Offset (F): 58.4
• Hub Pilot Diameter (G): 105.8
• Wheel Stud Quantity: 8
• Number of Splines: 33
• Flange Shape (K): MODIFIED
• ABS Sensor: Cable
• Location: Front Wheel
