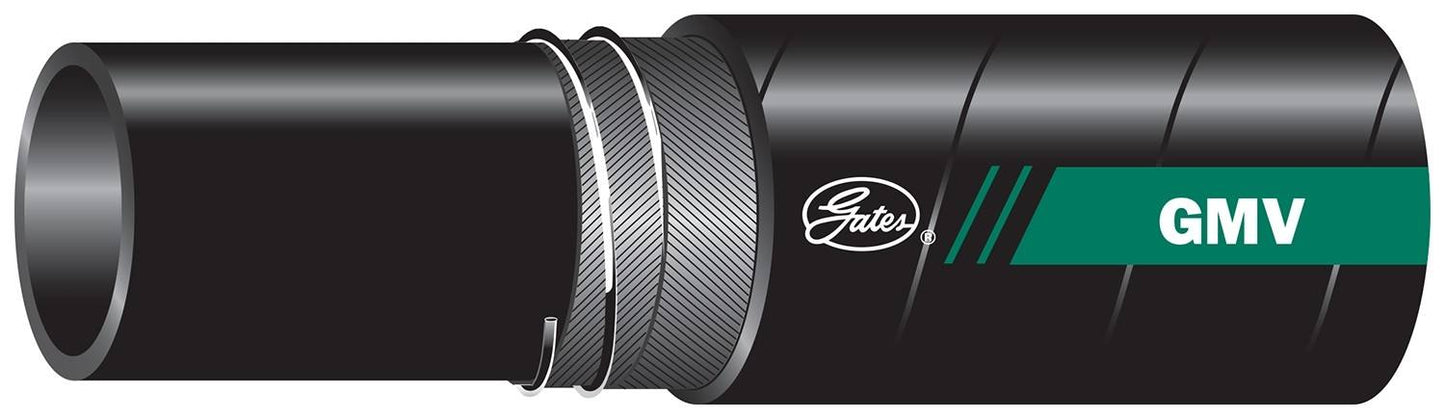

Gates Hydraulic Hose 85578

Hydraulic Hose. (85578) by Gates

GMV Return Line and Suction Hose is recommended for petroleum and water base hydraulic fluids in suction lines or in lowΓÇôpressure return lines.

• For use with GL Couplings [G43 Series] and MegaCrimp Couplings [G25 Series] (Use clamp over beaded nipple)
• Uses a helical spiral-wire to prevent hose collapse under suction
• Meets or exceeds requirements of SAE 100R4 and uses half the bend radius of SAE 100R4
• Meets marine ABS and DNV-GL with use of HeatGuard high temp sleeve and meets AS and USCG agency specifications
• Meets Flame Resistance Acceptance Designation MSHA 2G
• Temperature Range: -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C)
