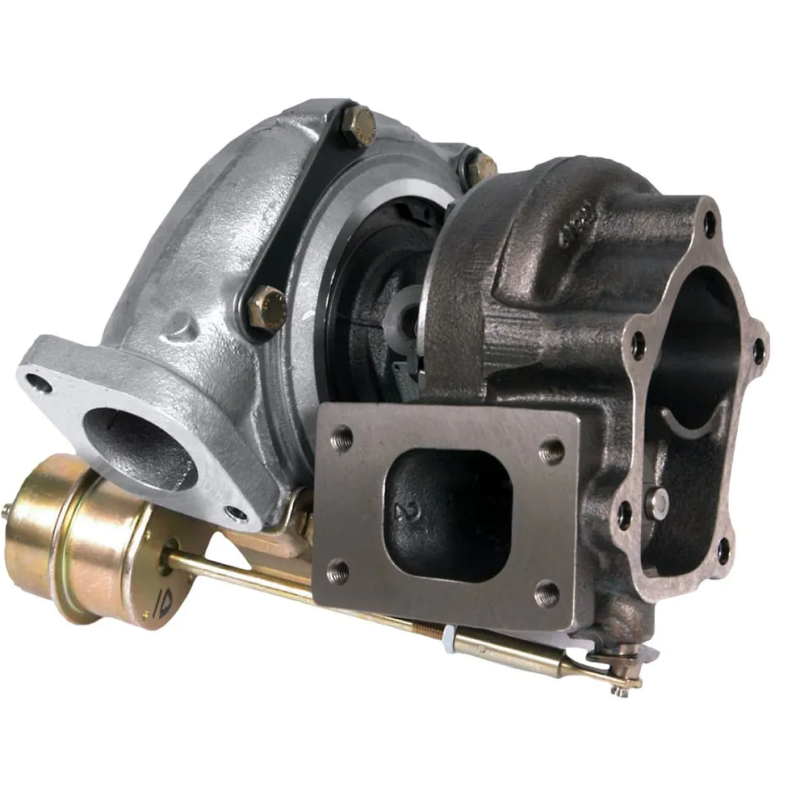

Garrett GT2860R Dual Ball Bearing Turbocharger
Garrett GT2860R Dual Ball Bearing Turbocharger
sku: 0WKEM | mpn: 836026-5005S
Regular price
$1,227.36
Regular price
$1,507.52
Sale price
$1,227.36
Shipping calculated at checkout.
12 in stock
Emissions
RACING/COMPETITION Use Only
California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.
Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Horsepower: 250 - 360
Displacement: 1.8L - 3.0L
Features:
- Original GT Series Aerodynamics
- Internally Wastegated Turbine Housing
- Sold as a Complete Turbo (Includes Turbine Kit & Actuator)
- Ball Bearing Configuration With Water Cooled Chra
- V-band Turbine Housing Options
- Bolt-on Upgrade For Nissan RB26DETT
Specification
| Turbo Reference Data | Compressor | Turbine | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Turbo PN | CHRA PN | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | A/R |
| 836026-5005S | 835998-0006 | 47mm | 60mm | 62 | 0.60 | 54mm | 47mm | 76 | 0.64 |
