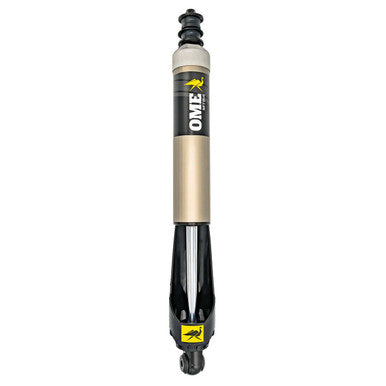

ARB OME MT64 Shock Tacoma Rear Hvy Left MT64601014L
ARB OME MT64 Shock Tacoma Rear Hvy Left MT64601014L
46 in stock
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Overview
MT64 is specifically designed to cater to the needs of overland and heavy vehicles with extreme added weight, offering unparalleled load handling capabilities and vehicle-specific damping, tuned for different loads and vehicle setups. Multiple snap-ring grooves in the strut body allow for different spring seat positions, providing 0-3 inches of lift when paired with coil springs (application specific). These cutting-edge shocks are built to handle the unique challenges faced by vehicles equipped with campers, toppers, tents, and rack systems. These additions create a dynamic shifting load, both in terms of front-to-back and side-to-side movements. MT64 is the ultimate overlanding authority, designed for the traveler who wants a smooth ride and comfort both on and off-road. Overlanding demands shocks that can handle all conditions, day after day, and that is what MT64 is designed to do. ;
Features & Benefits
- Monotube with a massive 2.8 inch body allowing for more oil and accurate shock tuning
- Adjustable spring seat offers 0-3 inch of lift depending on the application
- Aerospace grade aluminum body dissipates heat fifteen times faster than steel, and increases protection against stone damage
- Forged body cap and rod ends reduce weight while maintaining strength
- Digressive valving instantly reacts to changing surface conditions to maximize performance
- Smooth controlled ride for everyday and long-distance driving to reduce fatigue and improve driver and passenger comfort
- Vehicle specific tuning
- Direct replacement for stock and aftermarket lift kit
Specifications
| Color | Gray |
| Finish | Type III Hard Anodized |
| Material | Aluminum |
| CA Prop 65 | No |
| Lift Height | 0-3 in |
| Fitting Time | 15 minutes |
| Closed Length | 15.4 in |
| Type | Shock |
| Seals | Independent wiper |
| Bushes | Natural rubber |
| Design | Monotube |
| Valving | Digressive |
| Body Size | 2.8 in |
| Reservoir | Internal |
| Top Mount | OEM |
| Shaft Size | 7/8 in |
| Extended Length | 23.6 in |
| Lower Mount Type | Eye |
| Upper Mount Type | Pin |
| Compressed Length | 15.4 in |
| Adjustable Damping | No |
| Lower Mount Bush Kit | VD50020001SP |
| Upper Mount Bush Kit | VM50010005SP |
| Shaft Guard Replacement | VD31020240SP |
| Prop 65 | No |
Fitment
| Year | Make | Model | Submodel | Liter | Cylinders | Fuel type | Doors |
|---|---|---|---|---|---|---|---|
| 2005-2014 | Toyota | Tacoma | Base | 2.7 | 4 | GAS | 2 |
| 2005 | Toyota | Tacoma | Base | 2.7 | 4 | GAS | 3 |
| 2005-2015 | Toyota | Tacoma | Base | 2.7 | 4 | GAS | 4 |
| 2005-2014 | Toyota | Tacoma | Base | 4 | 6 | GAS | 2 |
| 2005 | Toyota | Tacoma | Base | 4 | 6 | GAS | 3 |
| 2005-2015 | Toyota | Tacoma | Base | 4 | 6 | GAS | 4 |
| 2016-2023 | Toyota | Tacoma | Limited | 3.5 | 6 | GAS | 4 |
| 2005-2010 | Toyota | Tacoma | Pre Runner | 2.7 | 4 | GAS | 2 |
| 2005 | Toyota | Tacoma | Pre Runner | 2.7 | 4 | GAS | 3 |
| 2005-2015 | Toyota | Tacoma | Pre Runner | 2.7 | 4 | GAS | 4 |
| 2005-2010 | Toyota | Tacoma | Pre Runner | 4 | 6 | GAS | 2 |
| 2005 | Toyota | Tacoma | Pre Runner | 4 | 6 | GAS | 3 |
| 2005-2015 | Toyota | Tacoma | Pre Runner | 4 | 6 | GAS | 4 |
| 2016-2023 | Toyota | Tacoma | SR | 2.7 | 4 | GAS | 4 |
| 2016-2023 | Toyota | Tacoma | SR | 3.5 | 6 | GAS | 4 |
| 2016-2023 | Toyota | Tacoma | SR5 | 2.7 | 4 | GAS | 4 |
| 2016-2023 | Toyota | Tacoma | SR5 | 3.5 | 6 | GAS | 4 |
| 2021 | Toyota | Tacoma | Trail | 3.5 | 6 | GAS | 4 |
| 2023 | Toyota | Tacoma | Trail Special Edition | 3.5 | 6 | GAS | 4 |
| 2016-2023 | Toyota | Tacoma | TRD Off-Road | 3.5 | 6 | GAS | 4 |
| 2017-2023 | Toyota | Tacoma | TRD Pro | 3.5 | 6 | GAS | 4 |
| 2015 | Toyota | Tacoma | TRD Pro | 4 | 6 | GAS | 4 |
| 2016-2023 | Toyota | Tacoma | TRD Sport | 3.5 | 6 | GAS | 4 |
| 2005 | Toyota | Tacoma | X-Runner | 4 | 6 | GAS | 3 |
| 2006-2013 | Toyota | Tacoma | X-Runner | 4 | 6 | GAS | 4 |
