| PART NO. | PRODUCT NAME | MSRP(USD) | |
|---|---|---|---|
| TB6020-NS05A (Same as Previous) |

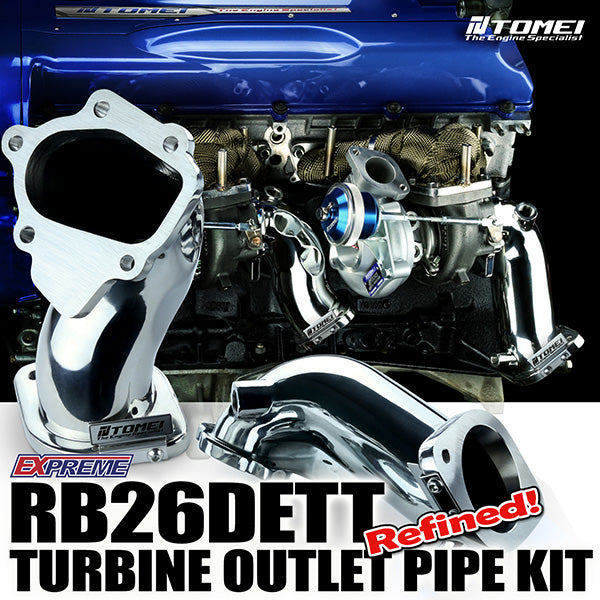

TURBINE OUTLET PIPE KIT EXPREME GT-R RB26DETT INVENTORY→ |
$590.00 |  |
| MAKER | ENGINE | MODEL |
|---|---|---|
| NISSAN | RB26DETT | 32 GT-R / 33 GT-R / 34 GT-R |
Large capacity unleashing potential
of the turbo
Large capacity suppresses secondary exhaust pressure.
Wide mouth catches the exhaust from the turbo and allows it to flow smoothly.
Large diameter Φ70.0 exit connects to the front pipe without any step.
Completely molded in one piece without any welds,
preventing problems with lost wax manufacturing method.
preventing problems with lost wax manufacturing method.
O₂ sensor bung included for BNR32.
Exhaust temperature sensor blind plug is also included for BNR32/BCNR33.
Recesses are provided in areas where it is difficult
for tools to enter to ensure precise tightening.
for tools to enter to ensure precise tightening.
Appearance is taken seriously in pursuing “beauty”
Ready to Use Immediately After Opening
SPECIFICATION
| TOMEI | OEM | |||||
|---|---|---|---|---|---|---|
| BNR32/BCNR33/BNR34 | BNR32/BCNR33 | BNR34 | ||||
| FRONT | REAR | FRONT | REAR | FRONT | REAR | |
| MATERIAL | SUS304 | - | - | |||
| EXIT DIAMETER |
Φ70.0mm | Φ58.0mm | Φ55.0mm | |||
| VOLUME | 700cc | 830cc | 630cc | 730cc | 600cc | 725cc |
| PIPE THICKNESS |
approx. 3.0mm | approx. 4.5mm | approx. 2.0mm | |||
| FLANGE THICKNESS |
approx. 12.0mm | approx. 11-14mm | approx. 11.5mm | |||
| WEIGHT | 2.0kg (4.5lbs) |
1.85kg (4.1lbs) |
2.3kg (5.1lbs) |
2.7kg (6.0lbs) |
1.75kg (3.9lbs) |
1.9kg (4.2lbs) |
RELATED PARTS
| PRODUCT | MATERIAL | PART NO. | |||
|---|---|---|---|---|---|
| TURBO | MX series (Journal Bearing) |
MX7655 | TB401A-NS05A INVENTORY→ |
 |
|
| MX8260 | TB401A-NS05B INVENTORY→ |
 |
|||
| BX series (Ball Bearing) |
BX7655 | TB403A-NS05A INVENTORY→ |
 |
||
| BX8260 | TB403A-NS05B INVENTORY→ |
 |
|||
| EX-MANI | SUS | TB6010-NS05A INVENTORY→ |
 |
||
| FRONT PIPE |
SUS | TB6080-NS05A INVENTORY→ |
 |
||
| MUFFLER | TITANIUM | BNR32 | TB6090-NS05A INVENTORY→ |
 |
|
| TITANIUM | BCNR33 | TB6090-NS05B INVENTORY→ |
|
||
| TITANIUM | BNR34 | TB6090-NS05C INVENTORY→ |
|
||
| STRAIGHT PIPE |
TITANIUM | TB6100-NS00A INVENTORY→ |
 |
||
EXHAUST PRODUCTS COMPATIBILITY LIST
| MAKE | MODEL | CATEGORY | MATERIAL | TYPE | PARTS NO. |
|---|---|---|---|---|---|
| NISSAN INFINITI |
35 GT-R | MUFFLER | TI | QUAD | TB6070-NS01A |
| 400Z | MUFFLER | TI | SINGLE | TB6090-NS21C | |
| DUAL | TB6090-NS21D | ||||
| 370Z | MUFFLER | TI | SINGLE | TB6090-NS02A | |
| Y PIPE | TI | TB6110-NS02A | |||
| MID PIPE | TI | TB6100-NS02A | |||
| 350Z | MUFFLER | TI | SINGLE | TB6090-NS04A | |
| EX-MANIFOLD | SUS | VQ35DE | TB6010-NS04A | ||
| Y PIPE | TI | TB6110-NS02A | |||
| MID PIPE | TI | VQ35DE | TB6100-NS04A | ||
| VQ35HR | TB6100-NS02A | ||||
| 32 GT-R | MUFFLER | TI | SINGLE | TB6090-NS05A | |
| 33 GT-R | MUFFLER | TI | SINGLE | TB6090-NS05B | |
| 34 GT-R | MUFFLER | TI | SINGLE | TB6090-NS05C | |
| 32,33,34 GT-R | EX-MANIFOLD | SUS | TB6010-NS05A | ||
| TURBINE OUTLET | SUS | TB6020-NS05A | |||
| FRONT PIPE | TI | TB6080-NS05A | |||
| 34 SKYLINE 2DOOR |
MUFFLER | TI | SINGLE | TB6090-NS06A | |
| 34 SKYLINE 4DOOR |
MUFFLER | TI | SINGLE | TB6090-NS06B | |
| 32,33,34 SKYLINE |
TURBINE OUTLET | SUS | RB20,25DET | TB6020-NS06A | |
| 13 SILVIA, 180SX,240SX |
MUFFLER | TI | SINGLE | TB6090-NS08A | |
| 14 SILVIA, 240SX |
MUFFLER | TI | SINGLE | TB6090-NS08B | |
| 15 SILVIA | MUFFLER | TI | SINGLE | TB6090-NS08C | |
| 13,14,15 SILVIA,180SX | EX-MANIFOLD | SUS | SR20DET | TB6010-NS08A | |
| TURBINE OUTLET | SUS | SR20DET | TB6020-NS08C | ||
| VARIOUS NISSAN |
MID PIPE | TI | TYPE-A | TB6100-NS00A | |
| Q60 | MUFFLER | TI | SINGLE | TB6090-NS21B | |
| Y PIPE | TI | TB6110-NS21A | |||
| G35 COUPE SKYLINE V35 COUPE | MUFFLER | TI | SINGLE | TB6090-NS04G | |
| G35 | EX-MANIFOLD | SUS | VQ35DE | TB6010-NS04A | |
| Y PIPE | TI | TB6110-NS02A | |||
| MID PIPE | TI | VQ35DE | TB6100-NS04A | ||
| Q50,RV37 SKYLINE | MUFFLER | TI | SINGLE | TB6090-NS21A | |
| Q50,SKYLINE 400R | Y PIPE | TI | TB6110-NS21A | ||
| SUBARU | WRX,WRX STI GDF USDM | MUFFLER | TI | SINGLE | TB6090-SB02A |
| WRX, WRX STI GD |
DOWN PIPE | SUS | EJ25 | TB6060-SB02A | |
| WRX,WRX STI GRF USDM | MUFFLER | TI | SINGLE | TB6090-SB02B | |
| WRX,WRX STI GVF/VA USDM | MUFFLER | TI | SINGLE | TB6090-SB02C | |
| WRX,WRX STI GR/GV/GE/ GH/VA |
DOWN PIPE | SUS | EJ25 | TB6060-SB02B | |
| 2002+ WRX 2004+ WRX STI | EX-MANIFOLD | SUS | UNEQUAL | TB6010-SB02A | |
| EQUAL | TB6010-SB02B | ||||
| 2015+ WRX | EX-MANIFOLD | SUS | UNEQUAL | TB6010-SB04A | |
| EQUAL | TB6010-SB04B | ||||
| MID PIPE | TI | TB6100-SB04A | |||
| 2022+ WRX | MUFFLER | TI | SINGLE | TB6090-SB06A | |
| DUAL | TB6090-SB06B | ||||
| WRX,WRX STI GDB A-D JDM | MUFFLER | TI | SINGLE | TB6090-SB01A | |
| WRX,WRX STI GDB E-G JDM | MUFFLER | TI | SINGLE | TB6090-SB01B | |
| WRX, WRX STI GR JDM |
MUFFLER | TI | SINGLE | TB6090-SB01C | |
| WRX, WRX STI GV JDM |
MUFFLER | TI | SINGLE | TB6090-SB01D | |
| WRX STI TWIN SCROOL | EX-MANIFOLD | SUS | EQUAL | TB6010-SB01A | |
| SUBARU, TOYOTA |
2013+ 86,BRZ, SCION FR-S |
MUFFLER | TI | SINGLE 60S | TB6090-SB03A |
| SINGLE 60R | TB6090-SB03B | ||||
| SINGLE 80 | TB6090-SB03C | ||||
| SINGLE 80 ver.2 | TB6090-SB05A | ||||
| DUAL | TB6090-SB05B | ||||
| EX-MANIFOLD | SUS | UNEQUAL | TB6010-SB03B | ||
| EQUAL | TB6010-SB03A | ||||
| JOINT PIPE | SUS | TB6060-SB03A | |||
| MID PIPE | TI | FOR 60S,60R (M/T ONLY) |
TB6100-SB03A | ||
| FOR 80,ver2,DUAL (M/T ONLY) |
TB6100-SB03B | ||||
| BUMPER COVER | CARBON | EARLY LH | TE301A-SB03A | ||
| EARLY RH | TE301A-SB03B | ||||
| FRP | 86 LATE LH | TE301A-SB03C | |||
| 86 LATE RH | TE301A-SB03D | ||||
| 2021+ GR86, BRZ |
MUFFLER | TI | SINGLE 80 ver.2 | TB6090-SB05A | |
| DUAL | TB6090-SB05B | ||||
| MID PIPE | TI | FOR 80,ver2,DUAL (M/T ONLY) |
TB6100-SB03B | ||
| TOYOTA | GR SUPRA | MUFFLER | TI | SINGLE | TB6090-TY06A |
| TI | DUAL | TB6090-TY06B | |||
| 80 SUPRA | MUFFLER | TI | SINGLE | TB6090-TY03A | |
| MID PIPE | TI | TB6110-TY03A | |||
| ADAPTER | TI | TB6120-0000A | |||
| 86 LEVIN/TRUENO | MUFFLER | TI | SINGLE R | TB6090-TY01A | |
| SINGLE S | TB6090-TY01B | ||||
| MID PIPE | TI | TB6100-TY01A | |||
| 100 CHASER,MARK2 | MUFFLER | TI | SINGLE | TB6090-TY04A | |
| TURBINE OUTLET | SUS | TB6020-TY04A | |||
| HONDA | FL5 CIVIC TYPE-R |
MUFFLER | TI | SINGLE | TB6090-HN06D |
| DUAL | TB6090-HN06E | ||||
| FK5 CIVIC TYPE-R |
MUFFLER | TI | SINGLE R | TB6090-HN06A | |
| SINGLE S | TB6090-HN06B | ||||
| S2000 | MUFFLER | TI | SINGLE | TB6090-HN04A | |
| MID PIPE | TI | TB6100-HN04A | |||
| DUAL | TB6090-HN06C | ||||
| MAZDA | NA MX-5 | MUFFLER | TI | SINGLE | TB6090-MZ01A |
| NB MX-5 | MUFFLER | TI | SINGLE | TB6090-MZ02A | |
| NC MX-5 | MUFFLER | TI | SINGLE | TB6090-MZ03A | |
| MID PIPE | TI | TB6100-MZ03A | |||
| ND MX-5 | MUFFLER | TI | SINGLE | TB6090-MZ06A | |
| FD RX-7 | MUFFLER | TI | SINGLE | TB6090-MZ05A | |
| MID PIPE | TI | TB6100-MZ05A | |||
| MITSUBISHI | EVO7-9 JDM BUMPER | MUFFLER | TI | SINGLE | TB6090-MT01A |
| EVO8-9 USDM BUMPER | MUFFLER | TI | SINGLE | TB6090-MT01B | |
| EVO4-9 | EX-MANIFOLD | SUS | TB6010-MT01A | ||
| EVO7-9 | OUTLET COMPONENT | SUS | TB6060-MT01A | ||
| MID PIPE | TI | TB6100-MT01A | |||
| EVO10 | MUFFLER | TI | SINGLE | TB6090-MT02A | |
| OUTLET COMPONENT | SUS | TB6060-MT02A | |||
| MID PIPE | TI | TB6100-MT02A | |||
| FORD | 2015+ MUSTANG ECOBOOST |
MUFFLER | TI | SINGLE | TB6090-FR01A |
| BUMPER COVER | CARBON | PREMIUM | TE301A-FR01A | ||
| TE301A-FR01B | |||||
| FOCUS ST | MUFFLER | TI | SINGLE | TB6090-FR02A | |
| HYUNDAI | GENESIS COUPE 2.0T |
MUFFLER | TI | SINGLE | TB6090-HY01A |
| MID PIPE | TI | TB6100-HY01A | |||
| BUMPER COVER | CARBON | TE301A-HY01A |
