APPLICATION
| PART NO. | PRODUCT NAME | IMAGE |
|---|---|---|

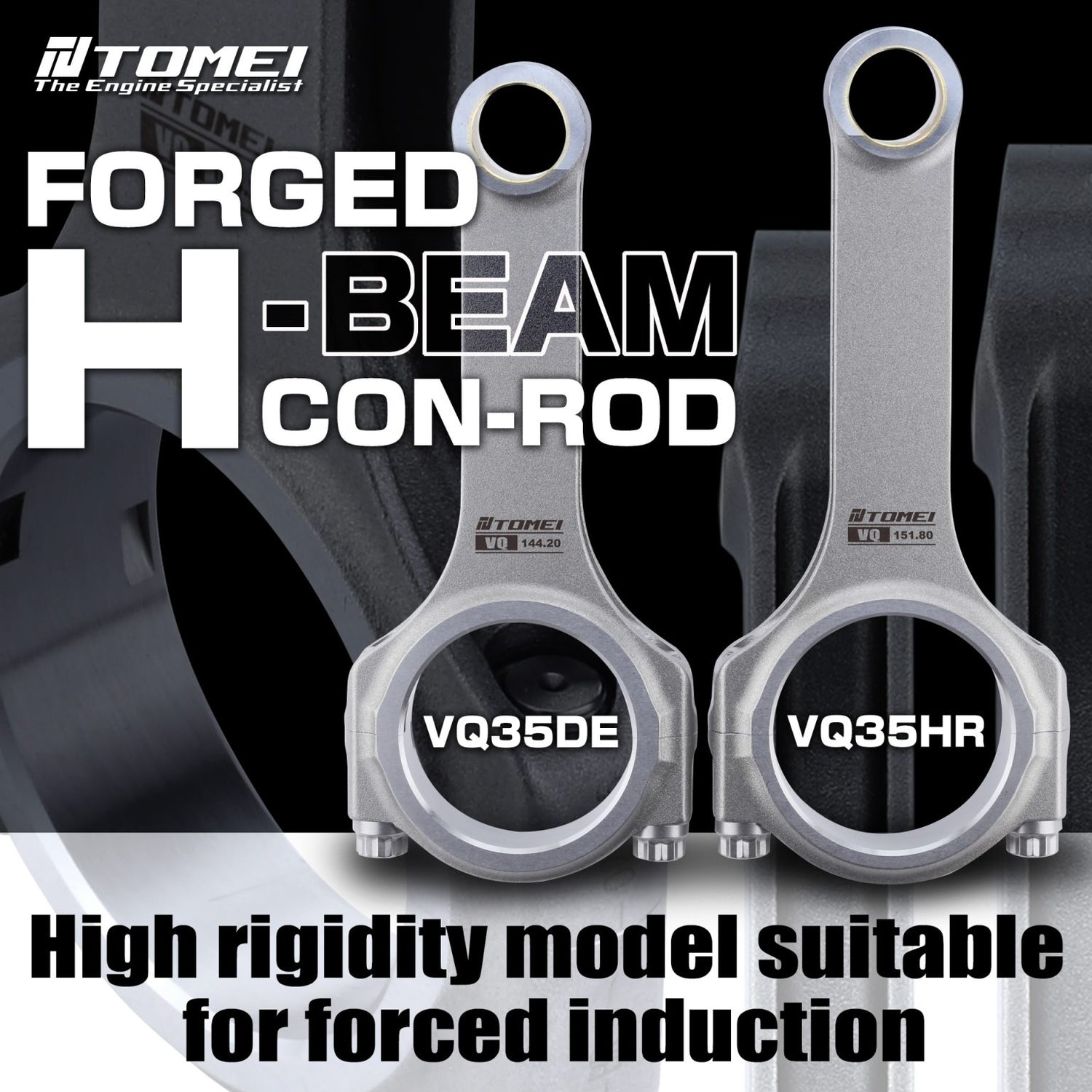

| TA203A-NS03A | FORGED H-BEAM CON-ROD SET VQ35HR 151.80MM (STD) More details |
 |
| TA203A-NS04A | FORGED H-BEAM CON-ROD SET VQ35DE 144.20MM (STD) More details |
 |
DESIGN COMPARISON
| NEW DESIGN | OLD DESIGN | |
|---|---|---|
| H-BEAM WIDTH | 28 mm | 25 mm |
| H-BEAM THICKNESS | 16.0 mm | 14.5 mm |
| H SECTION THICKNESS | 2.65 mm | 2.00 mm |
SPECIFICATIONS
BLOCK RELATED PRODUCTS
| MAKE | ENGINE | CATEGORY | NOTE 1 | NOTE 2 | PART NO. |
|---|---|---|---|---|---|
| NISSAN INFINITI |
VR38DETT | STROKER KIT | 4.1L | TOMEI | TA201A-NS01A |
| CP | TA201A-NS01AP | ||||
| PISTON | for 4.1L | TOMEI | TA202A-NS01A | ||
| CP | TA202A-NS01AP | ||||
| CON-ROD | for 4.1L | TA203A-NS01A | |||
| CRANKSHAFT | for 4.1L | TA204D-NS01A | |||
| VQ35HR | CON-ROD | for 3.5L(STD) | TA203A-NS03A | ||
| VQ35DE | CON-ROD | for 3.5L(STD) | TA203A-NS04A | ||
| RB26DETT | STROKER KIT | 2.8L Semi-C.W. | TOMEI | TA201A-NS05A | |
| CP | TA201A-NS05AP | ||||
| 2.8L Full-C.W. | TOMEI | TA201A-NS05B | |||
| CP | TA201A-NS05BP | ||||
| 2.6L(STD) Full-C.W. | TOMEI | TA201A-NS05C | |||
| CP | TA201A-NS05CP | ||||
| PISTON | for 2.6L(STD)/2.8L | TOMEI | TA202A-NS05A | ||
| CP | TA202A-NS05AP | ||||
| CON-ROD | for 2.6L(STD) | TA203A-NS05A | |||
| for 2.8L | TA203A-NS05B | ||||
| CRANKSHAFT | for 2.6L(STD) | Full-C.W. | TA204B-NS05A | ||
| for 2.8L | Full-C.W. | TA204B-NS05B | |||
| for 2.8L | Semi-C.W. | TA204C-NS05A | |||
| RB25DET | STROKER KIT | 2.8L Semi-C.W. | TOMEI | TA201A-NS05A | |
| CP | TA201A-NS05AP | ||||
| 2.8L Full-C.W. | TOMEI | TA201A-NS05B | |||
| CP | TA201A-NS05BP | ||||
| 2.6L Full-C.W. | TOMEI | TA201A-NS05C | |||
| CP | TA201A-NS05CP | ||||
| PISTON | for 2.6L/2.8L | TOMEI | TA202A-NS05A | ||
| CP | TA202A-NS05AP | ||||
| CON-ROD | for 2.5L(STD)/2.6L | TA203A-NS05A | |||
| for 2.8L | TA203A-NS05B | ||||
| CRANKSHAFT | for 2.6L | Full-C.W. | TA204B-NS05A | ||
| for 2.8L | Full-C.W. | TA204B-NS05B | |||
| for 2.8L | Semi-C.W. | TA204C-NS05A | |||
| RB25DE(T) NEO6 | CON-ROD | for 2.5L(STD) | TA203A-NS05A | ||
| RB25DE | CON-ROD | for 2.5L(STD) | TA203A-NS05A | ||
| SR20DET | STROKER KIT | 2.2L | TOMEI | TA201A-NS08A | |
| CP | TA201A-NS08AP | ||||
| PISTON | for 2.2L | TOMEI | TA202A-NS08A | ||
| CP | TA202A-NS08AP | ||||
| for 2.0L(STD) | TOMEI | TA202A-NS08B | |||
| CON-ROD | for 2.0L(STD)/2.2L | TA203A-NS08A | |||
| CRANKSHAFT | for 2.2L | TA204B-NS08A | |||
| SR20DE SR18DE |
CON-ROD | for 2.0L(STD)/1.8L(STD) | TA203A-NS08A | ||
| KA24DE | CON-ROD | for 2.4L(STD) | TA203A-NS16A | ||
| TOYOTA | 4A-G 16V | STROKER KIT | 1.8L | CP | TA201A-TY01AP |
| PISTON | for 1.8L | CP | TA202A-TY01AP | ||
| CON-ROD | for 1.6L(STD)/1.8L | TA203A-TY01A | |||
| CRANKSHAFT | for 1.8L | TA204B-TY01A | |||
| 4A-G 20V | STROKER KIT | 1.8L | CP | TA201A-TY02AP | |
| PISTON | for 1.8L | CP | TA202A-TY02AP | ||
| CON-ROD | for 1.6L(STD)/1.8L | TA203A-TY01A | |||
| CRANKSHAFT | for 1.8L | TA204B-TY01A | |||
| 2JZ-GTE | STROKER KIT | 3.4L | TOMEI | TA201A-TY03A | |
| CP | TA201A-TY03AP | ||||
| 3.6L | TOMEI | TA201A-TY03B | |||
| CP | TA201A-TY03BP | ||||
| PISTON | for 3.4L | TOMEI | TA202A-TY03A | ||
| CP | TA202A-TY03AP | ||||
| for 3.6L | TOMEI | TA202A-TY03B | |||
| CP | TA202A-TY03BP | ||||
| for 3.0L(STD) | TOMEI | TA202A-TY03C | |||
| CON-ROD | for 3.0L(STD)/3.4L | TA203A-TY03A | |||
| for 3.6L | TA203A-TY03B | ||||
| CRANKSHAFT | for 3.4L | TA204B-TY03A | |||
| CRANKSHAFT | for 3.6L | TA204B-TY03B | |||
| 1JZ-GTE | CON-ROD | for 2.5L(STD) | TA203A-TY04A | ||
| SUBARU | EJ25 | STROKER KIT | 2.6L | TOMEI | TA201A-SB02A |
| CP | TA201A-SB02AP | ||||
| PISTON | for 2.5L(STD)/2.6L | TOMEI | TA202A-SB02A | ||
| CP | TA202A-SB02AP | ||||
| CON-ROD | for 2.6L | TA203A-SB02A | |||
| for 2.5L(STD) | TA203A-SB01A | ||||
| CRANKSHAFT | for 2.6L | Full-C.W. | TA204B-SB02A | ||
| EJ20 | CON-ROD | for 2.0L(STD) | TA203A-SB01A | ||
| MITSUBISHI | 4G63 | STROKER KIT | 2.2L | TOMEI | TA201A-MT01A |
| CP | TA201A-MT01AP | ||||
| 2.3L | TOMEI | TA201A-MT01B | |||
| CP | TA201A-MT01BP | ||||
| PISTON | for 2.2L/2.3L | TOMEI | TA202A-MT01A | ||
| CP | TA202A-MT01AP | ||||
| CON-ROD | for 2.0L(STD)/2.2L | TA203A-MT01A | |||
| for 2.3L | TA203A-MT01B | ||||
| CRANKSHAFT | for 2.2L | Full-C.W. | TA204B-MT01A | ||
| for 2.3L | Full-C.W. | TA204B-MT01B | |||
| 4B11 | STROKER KIT | 2.3L | TOMEI | TA201A-MT02A | |
| CP | TA201A-MT02AP | ||||
| PISTON | for 2.3L | TOMEI | TA202A-MT02A | ||
| CP | TA202A-MT02AP | ||||
| CON-ROD | for 2.0L(STD)/2.3L | TA203A-MT02A | |||
| CRANKSHAFT | for 2.3L | Full-C.W. | TA204B-MT02A |
