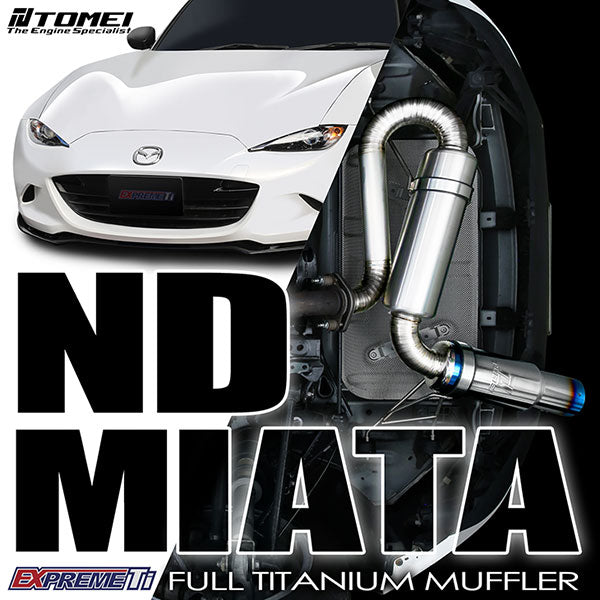

New Product Release - FULL TITANIUM MUFFLER for ND MIATA
| PART No. | PRODUCT NAME | MSRP(USD) | |
|---|---|---|---|
| TB6090-MZ06A | FULL TITANIUM MUFFLER EXPREM Ti ND MIATA INVENTORY→ |
$990.00 |  |
Application:
MAZDA ND MIATA
FULL TITAINUM MUFFLER SPECIFICATION
| TOMEI | OEM |
|---|
| PART No. | TB6090-MZ06A | - |
| MATERIAL | TITANIUM | - |
| MAIN PIPE DIAMETER | 2.5inch(63.5mm) | 2.1inch(54.0mm) |
| MAIN PIPE THICKNESS | 1.0mm | - |
| SUB SILENCER DIAMETER | 4.6inch(118.0mm) | - |
| SUB SILENCER THICKNESS | 1.0mm | - |
| SILENCER DIAMETER | 4.6inch(118.0mm) | 31.8 x 12.2 inch (810 x 310mm) |
| SILENCER THICKNESS | 1.0mm | - |
| EXIT DIAMETER | 3.5inch(89.1mm) | 2.4inch(61.0mm) x2 |
| EXIT THICKNESS | 1.0mm | 1.2mm |
| FLANGE THICKNESS | 2.0mm | 3.0mm |
| WEIGHT | 12.8lbs (5.8kg) | 20.5lbs (9.3kg) |
This kit includes all the components necessary for installation including the bolts and nuts.
Bolt Smooth Paste is also included to help prevent the bolts becoming seized under heat.
