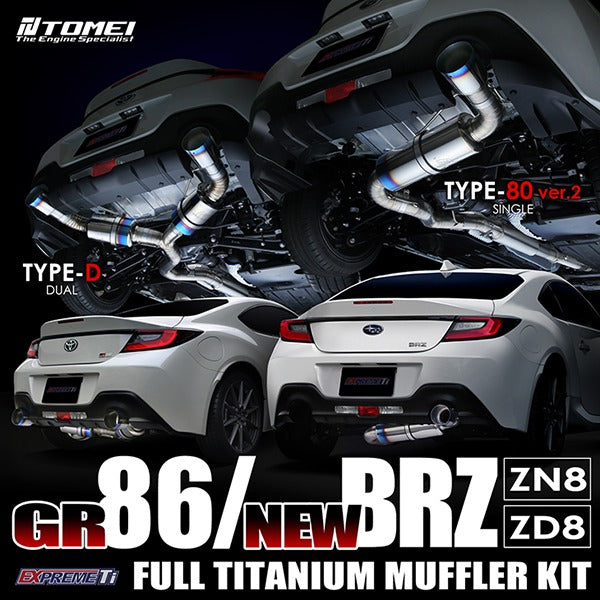

New Product Release: FULL TITANIUM MUFFLER for GR 86/NEW BRZ
| PART No. | PRODUCT NAME | MSRP(USD) | |
|---|---|---|---|
| TB6090-SB05A |
FULL TITANIUM MUFFLER KIT EXPREM Ti 86/FR-S/BRZ TYPE-80 Ver.2 INVENTORY→ |
$1,390.00 |  |
| TB6090-SB05B |
FULL TITANIUM MUFFLER KIT EXPREM Ti 86/FR-S/BRZ TYPE-D INVENTORY→ |
$1,890.00 |  |
Application:
TOYOTA/SCION 86/FR-S [ZN6/ZN8]
SUBARU BRZ [ZC6/ZD8]
| 86/ FR-S [ZN6] |
BRZ [ZC6] |
86 [ZN8] |
BRZ [ZC8] |
|||
| FA20 | FA24 | |||||
| 2021- | 2012- 2021 |
2021 | ||||
| New TYPE-80 Ver.2 |
TB6090-SB05A |  |
✓ | ✓ | ✓ | ✓ |
| New TYPE-D |
TB6090-SB05B |  |
✓ | ✓ | ✓ | ✓ |
| TYPE-60R | TB6090-SB03A |  |
✓ | ✓ | ||
| TYPE-60S | TB6090-SB03B |  |
✓ | ✓ | ||
| TYPE-80 | TB6090-SB03C |  |
✓ | ✓ | ||
FULL TITAINUM MUFFLER SPECIFICATION
| TYPE-80 Ver.2 | TYPE-D | ZN8/ZD8 | ZN6/ZC6 | |
| PART No. | TB6090-SB05A | TB6090-SB05B | - | - |
| MATERIAL | TITANIUM | STEEL | ||
| MAIN PIPE DIAMETER |
3.2inch (80.5mm ) |
3.2-3.0inch (80.5-76.3mm ) |
2.1-2.2inch (53.5-55.0mm) |
2.1inch (54.0mm) |
| MAIN PIPE THICKNESS |
1.0mm | - | - | |
| SILENCER DIAMETER |
6.0inch (152.0mm) |
6.0inch x2 (152.0mm x2) |
10.6 x24.8inch (270x630mm) |
- |
| SILENCER THICKNESS |
1.0mm | - | - | |
| SUB SILENCER DIAMETER |
4.6inch (118.0mm) | 4.6inch (118.0mm) | ||
| SUB SILENCER THICKNESS |
1.0mm | - | - | |
| EXIT DIAMETER |
4.5inch (115.0mm) |
4.5inch x2 (115.0mm x2) |
4.3inch (110.0mm x2) |
4.3inch x2 (110.0mm x2) |
| EXIT THICKNESS |
1.0mm | - | - | |
| FLANGE THICKNESS |
8.0mm | - | - | |
| WEIGHT | 18.7lbs (8.5kg) |
24.0lbs (10.9kg) |
35.2lbs (16.0kg) |
38.3lbs (17.4kg) |
Only Muffler installed.
This kit includes all the components necessary for installation including the bolts and nuts.
Bolt Smooth Paste is also included to help prevent the bolts becoming seized under heat.
| Column1 | Column2 | Column3 | Column4 | Column5 | Column6 | Column7 | Column8 |
| 86/ FR-S [ZN6] |
BRZ [ZC6] |
86 [ZN8] |
BRZ [ZD8] |
||||
| FA20 | FA24 | ||||||
| 2012- 2021 |
2012- 2020 |
2021 | |||||
| EQUAL LENGTH |
TB6010-SB03A INVENTORY→ |
 |
✓,✓, | ||||
| EXHAUST MANIFOLD |
UNEQUAL LENGTH |
TB6010-SB03B INVENTORY→ |
 |
✓ | ✓, | ||
| JOINT PIPE | TB6060-SB03A INVENTORY→ |
 |
✓,✓, | ||||
| MID PIPE | TYPE-80 | TB6100-SB03B INVENTORY→ |
 |
✓ *6MT only |
✓ *6MT only |
✓ *6MT only |
✓ *6MT only |
| TYPE-60 | TB6100-SB03A INVENTORY→ |
 |
✓ *6MT only |
✓ *6MT only |
✓ *6MT only |
✓ *6MT only |
|
| MUFFLER | New TYPE-80 ver.2 |
TB6090-SB05A INVENTORY→ |
|
✓,✓,✓,✓ | |||
| New TYPE-D |
TB6090-SB05B INVENTORY→ |
|
✓,✓,✓,✓ | ||||
| TYPE-60S | TB6090-SB03A INVENTORY→ |
|
✓,✓, | ||||
| TYPE-60R | TB6090-SB03B INVENTORY→ |
|
✓,✓, | ||||
| TYPE-80 | TB6090-SB03C INVENTORY→ |
|
✓,✓, | ||||
