PART No. | PRODUCT NAME | |
---|---|---|
TB6090-NS21C | ||
TB6090-NS21D |
APPLICATION
MAKER | ENGINE | MODEL |
---|---|---|
NISSAN | VR30DDTT | 400Z RZ34 |

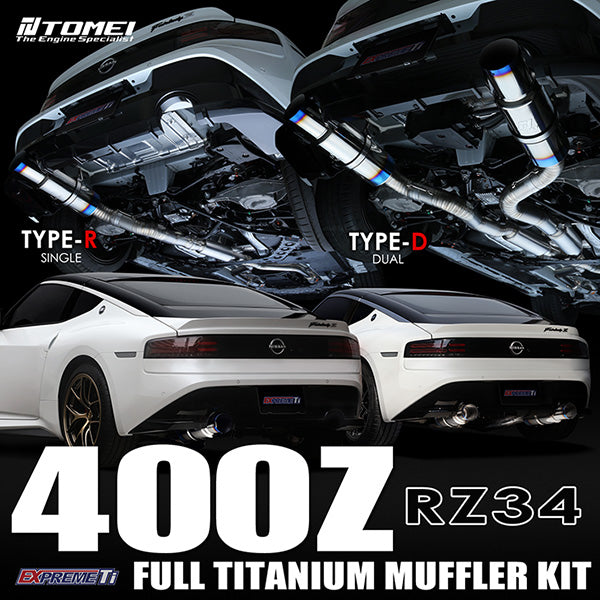

FULL TITANIUM MUFFLER SPECIFICATION
TOMEI | OEM | ||
---|---|---|---|
TYPE-R | TYPE-D | ||
PART No. | TB6090-NS21C | TB6090-NS21D | |
MATERIAL | Titanium | Steel | |
MAIN PIPE DIAMETER |
3.5inch (89.1mm) |
3.2inch (80.5mm) |
3.17-2.72inch (80.5-69.0mm) |
MAIN PIPE THICKNESS |
1.0mm | 2.0mm | |
MAIN SILENCER DIAMETER |
6.0inch (152mm) |
6.0inch x2 (152mm x2) |
8.66x8.66inch Square (220x220mm) |
SUB SILENCER DIAMETER |
4.7inch (118.0mm) |
4.7inch x2 (118.0mm x2) |
8.58x17.72inch Oval (218x450mm) |
MAIN SILENCER THICKNESS |
1.0mm | - | |
EXIT DIAMETER | 4.5inch (115.0mm) |
4.5inch x2 (115.0mm x2) |
3.9inch (99mm) |
EXIT THICKNESS | 1.0mm | - | |
WEIGHT | 14.4lbs (6.5kg) |
26.7lbs (12.1kg) |
44.1lbs (20.0kg) |
Only Muffler installed.
This kit includes all the components necessary for installation including the bolts and nuts.
Bolt Smooth Paste is also included to help prevent the bolts becoming seized under heat.
Bolt Smooth Paste is also included to help prevent the bolts becoming seized under heat.
PART No. | PRODUCT NAME | |
---|---|---|
TB6110-NS21A |
APPLICATION
MAKER | ENGINE | MODEL |
---|---|---|
NISSAN | VR30DDTT / VQ37VHR | 400Z RZ34 / Q50 / Q60 |
TOMEI | OEM |
---|
PART No. | TB6110-NS21A | - |
MATERIAL | TITANIUM | - |
MAIN PIPE DIAMETER | 2.5-2.76inch (63.5-70.0mm) |
1.77-2.52inch (45.0-64.0mm) |
MAIN PIPE THICKNESS | 1.0mm | - |
FLANGE THICKNESS | 8.0mm | 8.0mm |
WEIGHT | 5.7lbs (2.6kg) |
8.3lbs (3.8kg) |
EXHAUST PRODUCTS COMPATIBILITY LIST
MAKE | MODEL | CATEGORY | MATERIAL | TYPE | PARTS NO. |
---|---|---|---|---|---|
NISSAN INFINITI |
35 GT-R | MUFFLER | TI | QUAD | TB6070-NS01A |
400Z | MUFFLER | TI | SINGLE | TB6090-NS21C | |
DUAL | TB6090-NS21D | ||||
370Z | MUFFLER | TI | SINGLE | TB6090-NS02A | |
Y PIPE | TI | TB6110-NS02A | |||
MID PIPE | TI | TB6100-NS02A | |||
350Z | MUFFLER | TI | SINGLE | TB6090-NS04A | |
EX-MANIFOLD | SUS | VQ35DE | TB6010-NS04A | ||
Y PIPE | TI | TB6110-NS02A | |||
MID PIPE | TI | VQ35DE | TB6100-NS04A | ||
VQ35HR | TB6100-NS02A | ||||
32 GT-R | MUFFLER | TI | SINGLE | TB6090-NS05A | |
33 GT-R | MUFFLER | TI | SINGLE | TB6090-NS05B | |
34 GT-R | MUFFLER | TI | SINGLE | TB6090-NS05C | |
32,33,34 GT-R | EX-MANIFOLD | SUS | TB6010-NS05A | ||
TURBINE OUTLET | SUS | TB6020-NS05A | |||
FRONT PIPE | TI | TB6080-NS05A | |||
34 SKYLINE 2DOOR |
MUFFLER | TI | SINGLE | TB6090-NS06A | |
34 SKYLINE 4DOOR |
MUFFLER | TI | SINGLE | TB6090-NS06B | |
32,33,34 SKYLINE |
TURBINE OUTLET | SUS | RB20,25DET | TB6020-NS06A | |
13 SILVIA, 180SX,240SX |
MUFFLER | TI | SINGLE | TB6090-NS08A | |
14 SILVIA, 240SX |
MUFFLER | TI | SINGLE | TB6090-NS08B | |
15 SILVIA | MUFFLER | TI | SINGLE | TB6090-NS08C | |
13,14,15 SILVIA,180SX | EX-MANIFOLD | SUS | SR20DET | TB6010-NS08A | |
TURBINE OUTLET | SUS | SR20DET | TB6020-NS08C | ||
VARIOUS NISSAN |
MID PIPE | TI | TYPE-A | TB6100-NS00A | |
Q60 | MUFFLER | TI | SINGLE | TB6090-NS21B | |
Y PIPE | TI | TB6110-NS21A | |||
G35 COUPE SKYLINE V35 COUPE | MUFFLER | TI | SINGLE | TB6090-NS04G | |
G35 | EX-MANIFOLD | SUS | VQ35DE | TB6010-NS04A | |
Y PIPE | TI | TB6110-NS02A | |||
MID PIPE | TI | VQ35DE | TB6100-NS04A | ||
Q50,RV37 SKYLINE | MUFFLER | TI | SINGLE | TB6090-NS21A | |
Q50,SKYLINE 400R | Y PIPE | TI | TB6110-NS21A | ||
SUBARU | WRX,WRX STI GDF USDM | MUFFLER | TI | SINGLE | TB6090-SB02A |
WRX, WRX STI GD |
DOWN PIPE | SUS | EJ25 | TB6060-SB02A | |
WRX,WRX STI GRF USDM | MUFFLER | TI | SINGLE | TB6090-SB02B | |
WRX,WRX STI GVF/VA USDM | MUFFLER | TI | SINGLE | TB6090-SB02C | |
WRX,WRX STI GR/GV/GE/ GH/VA |
DOWN PIPE | SUS | EJ25 | TB6060-SB02B | |
2002+ WRX 2004+ WRX STI | EX-MANIFOLD | SUS | UNEQUAL | TB6010-SB02A | |
EQUAL | TB6010-SB02B | ||||
2015+ WRX | EX-MANIFOLD | SUS | UNEQUAL | TB6010-SB04A | |
EQUAL | TB6010-SB04B | ||||
MID PIPE | TI | TB6100-SB04A | |||
2022+ WRX | MUFFLER | TI | SINGLE | TB6090-SB06A | |
DUAL | TB6090-SB06B | ||||
WRX,WRX STI GDB A-D JDM | MUFFLER | TI | SINGLE | TB6090-SB01A | |
WRX,WRX STI GDB E-G JDM | MUFFLER | TI | SINGLE | TB6090-SB01B | |
WRX, WRX STI GR JDM |
MUFFLER | TI | SINGLE | TB6090-SB01C | |
WRX, WRX STI GV JDM |
MUFFLER | TI | SINGLE | TB6090-SB01D | |
WRX STI TWIN SCROOL | EX-MANIFOLD | SUS | EQUAL | TB6010-SB01A | |
SUBARU, TOYOTA |
2013+ 86,BRZ, SCION FR-S |
MUFFLER | TI | SINGLE 60S | TB6090-SB03A |
SINGLE 60R | TB6090-SB03B | ||||
SINGLE 80 | TB6090-SB03C | ||||
SINGLE 80 ver.2 | TB6090-SB05A | ||||
DUAL | TB6090-SB05B | ||||
EX-MANIFOLD | SUS | UNEQUAL | TB6010-SB03B | ||
EQUAL | TB6010-SB03A | ||||
JOINT PIPE | SUS | TB6060-SB03A | |||
MID PIPE | TI | FOR 60S,60R (M/T ONLY) |
TB6100-SB03A | ||
FOR 80,ver2,DUAL (M/T ONLY) |
TB6100-SB03B | ||||
BUMPER COVER | CARBON | EARLY LH | TE301A-SB03A | ||
EARLY RH | TE301A-SB03B | ||||
FRP | 86 LATE LH | TE301A-SB03C | |||
86 LATE RH | TE301A-SB03D | ||||
2021+ GR86, BRZ |
MUFFLER | TI | SINGLE 80 ver.2 | TB6090-SB05A | |
DUAL | TB6090-SB05B | ||||
MID PIPE | TI | FOR 80,ver2,DUAL (M/T ONLY) |
TB6100-SB03B | ||
TOYOTA | GR SUPRA | MUFFLER | TI | SINGLE | TB6090-TY06A |
TI | DUAL | TB6090-TY06B | |||
80 SUPRA | MUFFLER | TI | SINGLE | TB6090-TY03A | |
MID PIPE | TI | TB6110-TY03A | |||
ADAPTER | TI | TB6120-0000A | |||
86 LEVIN/TRUENO | MUFFLER | TI | SINGLE R | TB6090-TY01A | |
SINGLE S | TB6090-TY01B | ||||
MID PIPE | TI | TB6100-TY01A | |||
100 CHASER,MARK2 | MUFFLER | TI | SINGLE | TB6090-TY04A | |
TURBINE OUTLET | SUS | TB6020-TY04A | |||
HONDA | FL5 CIVIC TYPE-R |
MUFFLER | TI | SINGLE | TB6090-HN06D |
DUAL | TB6090-HN06E | ||||
FK5 CIVIC TYPE-R |
MUFFLER | TI | SINGLE R | TB6090-HN06A | |
SINGLE S | TB6090-HN06B | ||||
S2000 | MUFFLER | TI | SINGLE | TB6090-HN04A | |
MID PIPE | TI | TB6100-HN04A | |||
DUAL | TB6090-HN06C | ||||
MAZDA | NA MX-5 | MUFFLER | TI | SINGLE | TB6090-MZ01A |
NB MX-5 | MUFFLER | TI | SINGLE | TB6090-MZ02A | |
NC MX-5 | MUFFLER | TI | SINGLE | TB6090-MZ03A | |
MID PIPE | TI | TB6100-MZ03A | |||
ND MX-5 | MUFFLER | TI | SINGLE | TB6090-MZ06A | |
FD RX-7 | MUFFLER | TI | SINGLE | TB6090-MZ05A | |
MID PIPE | TI | TB6100-MZ05A | |||
MITSUBISHI | EVO7-9 JDM BUMPER | MUFFLER | TI | SINGLE | TB6090-MT01A |
EVO8-9 USDM BUMPER | MUFFLER | TI | SINGLE | TB6090-MT01B | |
EVO4-9 | EX-MANIFOLD | SUS | TB6010-MT01A | ||
EVO7-9 | OUTLET COMPONENT | SUS | TB6060-MT01A | ||
MID PIPE | TI | TB6100-MT01A | |||
EVO10 | MUFFLER | TI | SINGLE | TB6090-MT02A | |
OUTLET COMPONENT | SUS | TB6060-MT02A | |||
MID PIPE | TI | TB6100-MT02A | |||
FORD | 2015+ MUSTANG ECOBOOST |
MUFFLER | TI | SINGLE | TB6090-FR01A |
BUMPER COVER | CARBON | PREMIUM | TE301A-FR01A | ||
TE301A-FR01B | |||||
FOCUS ST | MUFFLER | TI | SINGLE | TB6090-FR02A | |
HYUNDAI | GENESIS COUPE 2.0T |
MUFFLER | TI | SINGLE | TB6090-HY01A |
MID PIPE | TI | TB6100-HY01A | |||
BUMPER COVER | CARBON | TE301A-HY01A |
