KIT
| PART NO. | PRODUCT NAME | IMAGE |
|---|---|---|

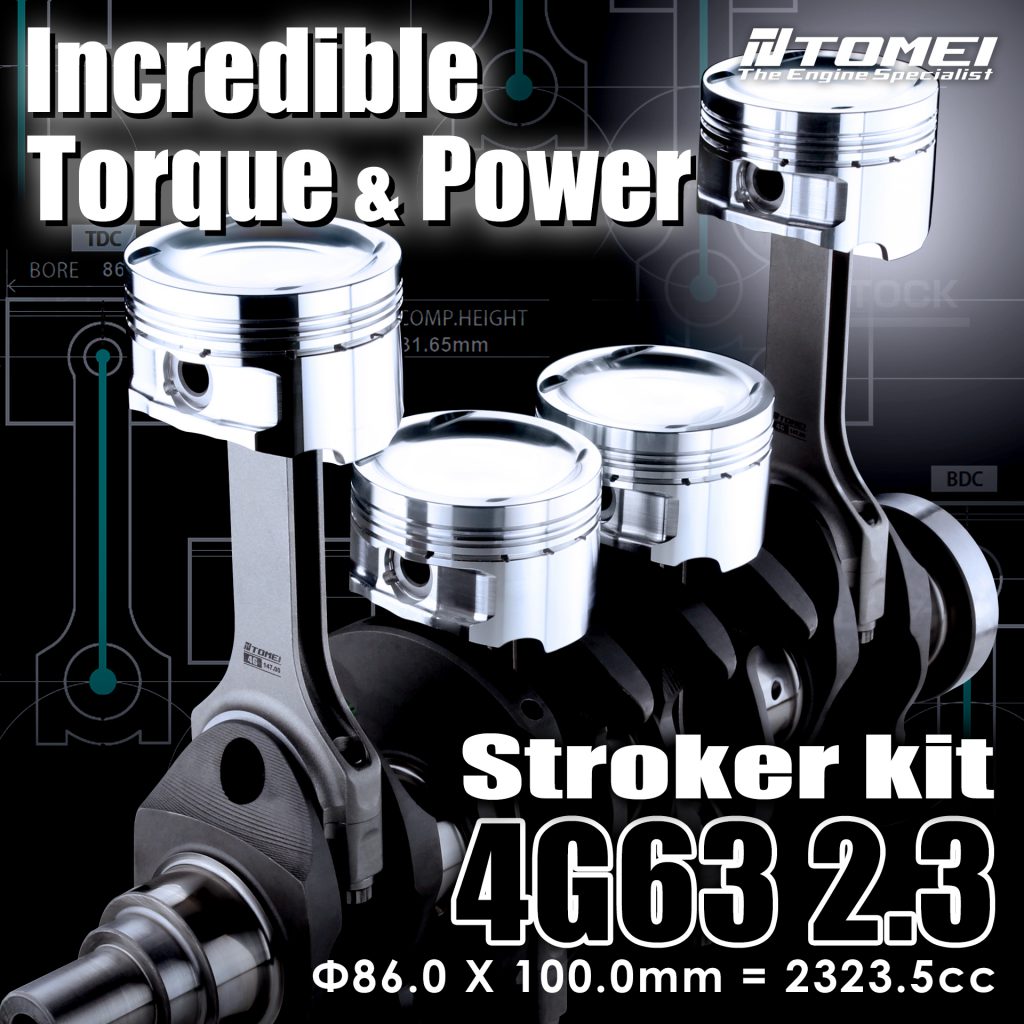

| TA201A-MT01B | STROKER KIT 4G63 EVO1-9 2.3 TOMEI PISTON More details -> |
 |
| TA201A-MT01BP | STROKER KIT 4G63 EVO1-9 2.3 CP PISTON More details -> |
 |
COMPONENTS
| PART NO. | PRODUCT NAME | IMAGE |
|---|---|---|
| TA202A-MT01A | FORGED PISTON KIT 4G63 86.00MM CH31.65 (2.2/2.3) More details -> |
 |
| TA202A-MT01AP | FORGED PISTON KIT 4G63 86.00MM CH31.65 (2.2/2.3) CP More details -> |
 |
| TA203A-MT01B | FORGED H-BEAM CON-ROD SET 4G63 147.00MM (2.3) More details -> |
 |
| TA204B-MT01B | FORGED BILLET FULL COUNTERWEIGHT CRANKSHAFT 4G63 EVO1-9 2.3 100.0MM More details -> |
 |
DESCRIPTION
SPECIFICATIONS
| TOMEI PISTON | CP PISTON | |
|---|---|---|
| BORE | 86.0mm (OEM+1.0) | |
| STROKE | 100.00mm (OEM+12.0) | |
| DISPLACEMENT | 2,323.5cc | |
| C.C. VOLUME | -19.5cc | -19.6cc |
| PISTON DECK CLEARANCE/HIGHT | -0.35mm | |
| PISTON COMP.HEIGHT | 31.65mm (OEM -3.35) | |
| ROD C-to-C | 147.00mm (OEM -3.0) | |
| HEAD GASKET BORE | 86.5mm | |
COMPRESSION RATIO Ref.
| HEAD GASKET | TOMEI PISTON | CP PISTON |
|---|---|---|
| 86.5.-1.0mm | 9.25 | 9.24 |
| 86.5.-1.2mm | 9.11 | 9.10 |
| 86.5.-1.5mm | 8.92 | 8.91 |
| 86.5.-1.8mm | 8.73 | 8.72 |
BLOCK RELATED PRODUCTS
| MAKE | ENGINE | CATEGORY | NOTE 1 | NOTE 2 | PART NO. |
|---|---|---|---|---|---|
| NISSAN INFINITI |
VR38DETT | STROKER KIT | 4.1L | TOMEI | TA201A-NS01A |
| CP | TA201A-NS01AP | ||||
| PISTON | for 4.1L | TOMEI | TA202A-NS01A | ||
| CP | TA202A-NS01AP | ||||
| CON-ROD | for 4.1L | TA203A-NS01A | |||
| CRANKSHAFT | for 4.1L | TA204D-NS01A | |||
| VQ35HR | CON-ROD | for 3.5L(STD) | TA203A-NS03A | ||
| VQ35DE | CON-ROD | for 3.5L(STD) | TA203A-NS04A | ||
| RB26DETT | STROKER KIT | 2.8L Semi-C.W. | TOMEI | TA201A-NS05A | |
| CP | TA201A-NS05AP | ||||
| 2.8L Full-C.W. | TOMEI | TA201A-NS05B | |||
| CP | TA201A-NS05BP | ||||
| 2.6L(STD) Full-C.W. | TOMEI | TA201A-NS05C | |||
| CP | TA201A-NS05CP | ||||
| PISTON | for 2.6L(STD)/2.8L | TOMEI | TA202A-NS05A | ||
| CP | TA202A-NS05AP | ||||
| CON-ROD | for 2.6L(STD) | TA203A-NS05A | |||
| for 2.8L | TA203A-NS05B | ||||
| CRANKSHAFT | for 2.6L(STD) | Full-C.W. | TA204B-NS05A | ||
| for 2.8L | Full-C.W. | TA204B-NS05B | |||
| for 2.8L | Semi-C.W. | TA204C-NS05A | |||
| RB25DET | STROKER KIT | 2.8L Semi-C.W. | TOMEI | TA201A-NS05A | |
| CP | TA201A-NS05AP | ||||
| 2.8L Full-C.W. | TOMEI | TA201A-NS05B | |||
| CP | TA201A-NS05BP | ||||
| 2.6L Full-C.W. | TOMEI | TA201A-NS05C | |||
| CP | TA201A-NS05CP | ||||
| PISTON | for 2.6L/2.8L | TOMEI | TA202A-NS05A | ||
| CP | TA202A-NS05AP | ||||
| CON-ROD | for 2.5L(STD)/2.6L | TA203A-NS05A | |||
| for 2.8L | TA203A-NS05B | ||||
| CRANKSHAFT | for 2.6L | Full-C.W. | TA204B-NS05A | ||
| for 2.8L | Full-C.W. | TA204B-NS05B | |||
| for 2.8L | Semi-C.W. | TA204C-NS05A | |||
| RB25DE(T) NEO6 | CON-ROD | for 2.5L(STD) | TA203A-NS05A | ||
| RB25DE | CON-ROD | for 2.5L(STD) | TA203A-NS05A | ||
| SR20DET | STROKER KIT | 2.2L | TOMEI | TA201A-NS08A | |
| CP | TA201A-NS08AP | ||||
| PISTON | for 2.2L | TOMEI | TA202A-NS08A | ||
| CP | TA202A-NS08AP | ||||
| for 2.0L(STD) | TOMEI | TA202A-NS08B | |||
| CON-ROD | for 2.0L(STD)/2.2L | TA203A-NS08A | |||
| CRANKSHAFT | for 2.2L | TA204B-NS08A | |||
| SR20DE SR18DE |
CON-ROD | for 2.0L(STD)/1.8L(STD) | TA203A-NS08A | ||
| KA24DE | CON-ROD | for 2.4L(STD) | TA203A-NS16A | ||
| TOYOTA | 4A-G 16V | STROKER KIT | 1.8L | CP | TA201A-TY01AP |
| PISTON | for 1.8L | CP | TA202A-TY01AP | ||
| CON-ROD | for 1.6L(STD)/1.8L | TA203A-TY01A | |||
| CRANKSHAFT | for 1.8L | TA204B-TY01A | |||
| 4A-G 20V | STROKER KIT | 1.8L | CP | TA201A-TY02AP | |
| PISTON | for 1.8L | CP | TA202A-TY02AP | ||
| CON-ROD | for 1.6L(STD)/1.8L | TA203A-TY01A | |||
| CRANKSHAFT | for 1.8L | TA204B-TY01A | |||
| 2JZ-GTE | STROKER KIT | 3.4L | TOMEI | TA201A-TY03A | |
| CP | TA201A-TY03AP | ||||
| 3.6L | TOMEI | TA201A-TY03B | |||
| CP | TA201A-TY03BP | ||||
| PISTON | for 3.4L | TOMEI | TA202A-TY03A | ||
| CP | TA202A-TY03AP | ||||
| for 3.6L | TOMEI | TA202A-TY03B | |||
| CP | TA202A-TY03BP | ||||
| for 3.0L(STD) | TOMEI | TA202A-TY03C | |||
| CON-ROD | for 3.0L(STD)/3.4L | TA203A-TY03A | |||
| for 3.6L | TA203A-TY03B | ||||
| CRANKSHAFT | for 3.4L | TA204B-TY03A | |||
| CRANKSHAFT | for 3.6L | TA204B-TY03B | |||
| 1JZ-GTE | CON-ROD | for 2.5L(STD) | TA203A-TY04A | ||
| SUBARU | EJ25 | STROKER KIT | 2.6L | TOMEI | TA201A-SB02A |
| CP | TA201A-SB02AP | ||||
| PISTON | for 2.5L(STD)/2.6L | TOMEI | TA202A-SB02A | ||
| CP | TA202A-SB02AP | ||||
| CON-ROD | for 2.6L | TA203A-SB02A | |||
| for 2.5L(STD) | TA203A-SB01A | ||||
| CRANKSHAFT | for 2.6L | Full-C.W. | TA204B-SB02A | ||
| EJ20 | CON-ROD | for 2.0L(STD) | TA203A-SB01A | ||
| MITSUBISHI | 4G63 | STROKER KIT | 2.2L | TOMEI | TA201A-MT01A |
| CP | TA201A-MT01AP | ||||
| 2.3L | TOMEI | TA201A-MT01B | |||
| CP | TA201A-MT01BP | ||||
| PISTON | for 2.2L/2.3L | TOMEI | TA202A-MT01A | ||
| CP | TA202A-MT01AP | ||||
| CON-ROD | for 2.0L(STD)/2.2L | TA203A-MT01A | |||
| for 2.3L | TA203A-MT01B | ||||
| CRANKSHAFT | for 2.2L | Full-C.W. | TA204B-MT01A | ||
| for 2.3L | Full-C.W. | TA204B-MT01B | |||
| 4B11 | STROKER KIT | 2.3L | TOMEI | TA201A-MT02A | |
| CP | TA201A-MT02AP | ||||
| PISTON | for 2.3L | TOMEI | TA202A-MT02A | ||
| CP | TA202A-MT02AP | ||||
| CON-ROD | for 2.0L(STD)/2.3L | TA203A-MT02A | |||
| CRANKSHAFT | for 2.3L | Full-C.W. | TA204B-MT02A |
